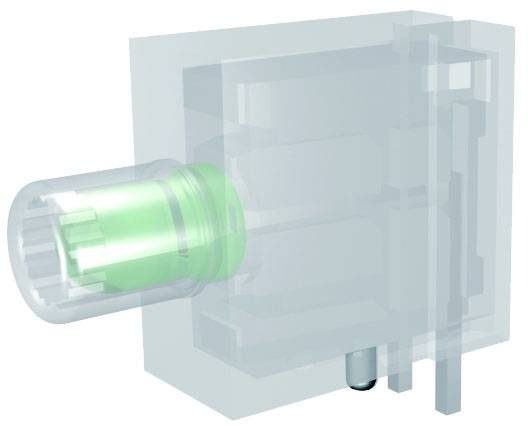

Signal Construct LED component Blue (L x W x H) 15 x 5 x 14 mm Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
CS
2.54 mm
Product type
LED component
Factory colour
Blue
Case colour
Black
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.25
6
8% = € 0.10
€ 1.15
10
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.25 / piece)
€ 2.50
plus VAT.
14-day return policy included
Technical specifications
- Factory colour
Blue
- Packaging type
Bulk
- Case colour
Black
- Dim
(L x W x H) 15 x 5 x 14 mm
- Height
14 mm
- Length
15 mm
- Width
5 mm
- Wavelength
465 nm
- Type (LEDs)
Diffused
- CS
2.54 mm
- Forward current I(F)
20 mA
- Forward voltage U(F)
3.2 V
- Radiation angle
40°
- LEDs
1
- RoHS-compliant
Yes
- Moisture Sensitiviy Level (MSL)
1
- Product type
LED component
Documents & Downloads
Datasheet
Datasheet 2435433 Signal Construct LED component Blue (L x W x H) 15 x 5 x 14 mm Bulk
User & Safety Instructions
User & Safety Instructions 2435433 Signal Construct LED component Blue (L x W x H) 15 x 5 x 14 mm Bulk
Description
LED component for direct soldering in
Printed circuit boards. Optimum ESD strength

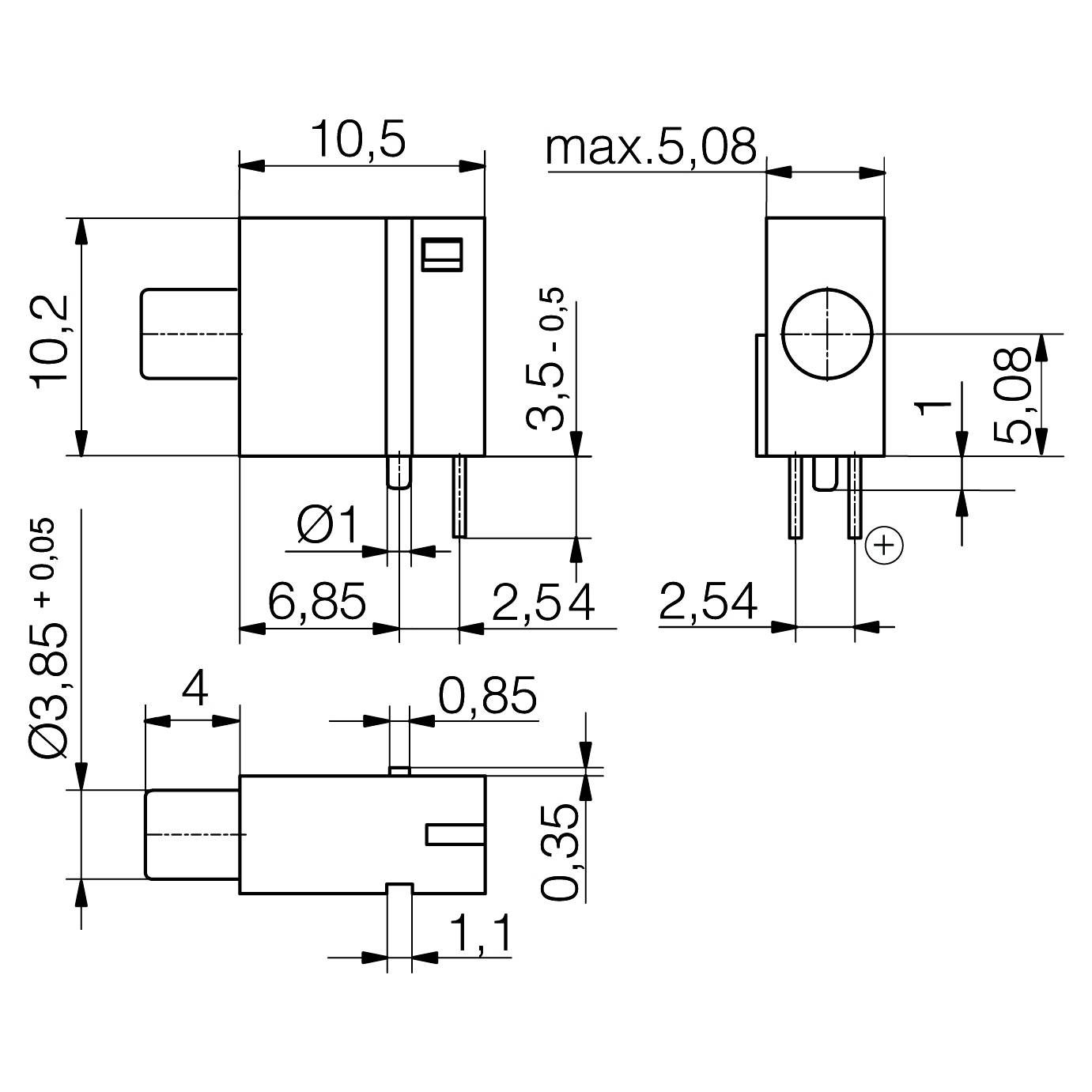

Through integrated protective cap. Dimensions 14.5 x 10 x 5.4 mm
ESD-withstand voltage: 15kV
Soldering temperature 260°/5 sec.
This text is machine translated.
Printed circuit boards. Optimum ESD strength
Through integrated protective cap. Dimensions 14.5 x 10 x 5.4 mm
ESD-withstand voltage: 15kV
Soldering temperature 260°/5 sec.
This text is machine translated.
