Signal Construct MBRE140864A LED bulb White E14 24 V DC/AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€
Technical specifications
- Factory colour
White
- Operating voltage
24 V DC/AC
- Operating voltage
- Colour temperature
4500K
- Radiation angle
360°
- Dim
(Ø x L) 19 mm x 50 mm
- Length
50 mm
- (Ø)
19 mm
100000
- Min. temperature
+70 °C
- Max. temperature
-30 °C
- RoHS-compliant
Yes
n.rel.
- Content
1 pc(s)
- Colour temperature range
4500 K
4500 K
E14
- Moisture Sensitiviy Level (MSL)
1
- Product type
LED bulb
Documents & Downloads
Datasheet
Datasheet 2435469 Signal Construct MBRE140864A LED bulb White E14 24 V DC/AC
User & Safety Instructions
User & Safety Instructions 2435469 Signal Construct MBRE140864A LED bulb White E14 24 V DC/AC
Description
LED lamp with 8 chip LEDs, the segment
Are arranged at a distance of 90°.
Homogeneous light distribution over 360°
A length of 20 mm.
Insensitive to shock and vibration.
Combined hexagonal (SW10) and cross-recess
For screwdriver at the top of the housing.

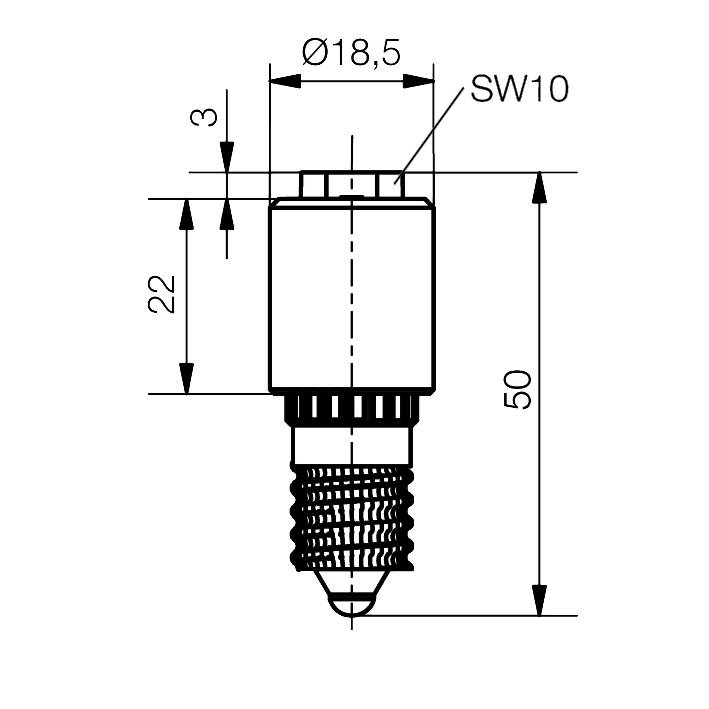

Dimensions: Ø18,5 mm / length 50 mm
PCB: Equipped with 8 chip LEDs
Socket: E14
OPERATING VOLTAGE 12/14V AC/DC
24/28V AC/DC
42/48V AV/DC
This text is machine translated.
Are arranged at a distance of 90°.
Homogeneous light distribution over 360°
A length of 20 mm.
Insensitive to shock and vibration.
Combined hexagonal (SW10) and cross-recess
For screwdriver at the top of the housing.
Dimensions: Ø18,5 mm / length 50 mm
PCB: Equipped with 8 chip LEDs
Socket: E14
OPERATING VOLTAGE 12/14V AC/DC
24/28V AC/DC
42/48V AV/DC
This text is machine translated.
