Signal Construct MBRE141258A LED bulb White E14 230 V DC/AC
EAN:
Part number:
Item no:
Product type
LED bulb
Operating voltage
230 V DC/AC
Base
E14
Factory colour
White
Head Ø
18.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Technical specifications
- Product type
LED bulb
- Factory colour
White
- Operating voltage
230 V DC/AC
E14
- Head Ø
18.5 mm
- Case colour
White
- Colour temperature
3000K
- Radiation angle
360°
- Dim
(Ø x H) 19 mm x 50 mm
- Length
50 mm
- Height
50 mm
- (Ø)
19 mm
100000
- Min. temperature
+70 °C
- Max. temperature
-30 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
3000 K
- Colour temperature range
3000 K
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435474 Signal Construct MBRE141258A LED bulb White E14 230 V DC/AC
User & Safety Instructions
User & Safety Instructions 2435474 Signal Construct MBRE141258A LED bulb White E14 230 V DC/AC
Description
LED lamp with 12 chip LEDs, the segment
Are arranged at a distance of 90°.
Homogeneous light distribution over 360°
A length of 20 mm.
Insensitive to shock and vibration.
Combined hexagonal (SW10) and cross-recess
For screwdriver at the top of the housing.

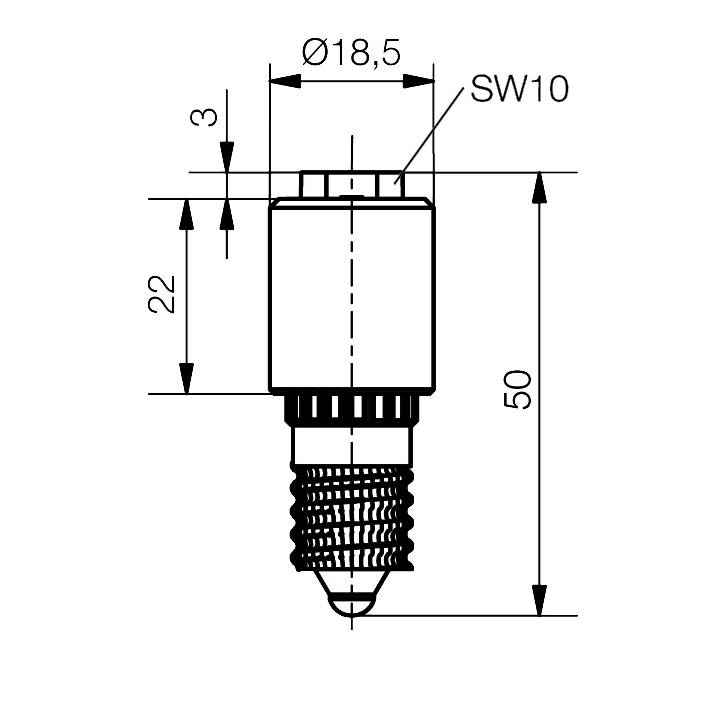

Dimensions: Ø18,5 mm / length 50 mm
Printed circuit board: Equipped with 12 chip LEDs
Socket: E14
Operating voltage: 130V AC/DC
230V AC/DC
This text is machine translated.
Are arranged at a distance of 90°.
Homogeneous light distribution over 360°
A length of 20 mm.
Insensitive to shock and vibration.
Combined hexagonal (SW10) and cross-recess
For screwdriver at the top of the housing.
Dimensions: Ø18,5 mm / length 50 mm
Printed circuit board: Equipped with 12 chip LEDs
Socket: E14
Operating voltage: 130V AC/DC
230V AC/DC
This text is machine translated.
