Signal Construct MEDT5564 LED indicator light White T5.5 k 24 V DC 11 mA 2000 mcd 428 mlm
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
24 V DC
Base
T5.5 k
Operating current
11 mA
Light intensity I(V)
2000 mcd
Datasheet (PDF)
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Signal Construct MEDT5564 LED indicator light White T5.5 k 24 V DC 11 mA 2000 mcd 428 mlm
Our service for you
Technical specifications
- LED Ø: 3 mm
- Product type
LED indicator light
- Type
MEDT5564
- Factory colour
White
- Operating voltage
24 V DC
T5.5 k
- Operating current
11 mA
- Head Ø
3 mm
- Light intensity I(V)
2000 mcd
- Colour temperature
6000 K
- Radiation angle
60°
- LED features
LED 3 mm

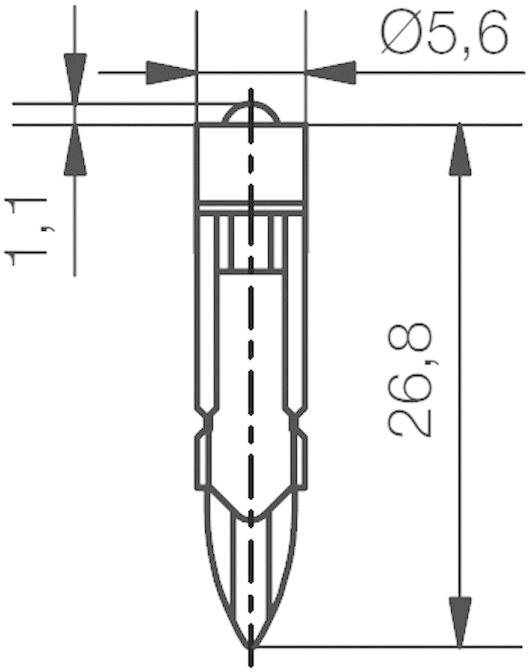

- Dim
(Ø x H) 5.6 mm x 27.9 mm
- Height
27.9 mm
- (Ø)
5.6 mm
- Min. temperature
-20 °C
- Max. temperature
80 °C
- RoHS-compliant
Yes
- Type (LEDs)
White
- Content
1 pc(s)
6000 K
- Colour temperature range
6000 K
- Luminous flux (Φ)
428 mlm
- Operating current
11 mA
- Temperature range
-20 - +80 °C
- Operating voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 725757 Signal Construct MEDT5564 LED indicator light White T5.5 k 24 V DC 11 mA 2000 mcd 428 mlm
User & Safety Instructions
User & Safety Instructions 725757 Signal Construct MEDT5564 LED indicator light White T5.5 k 24 V DC 11 mA 2000 mcd 428 mlm
Description
These LED indicators replace conventional scale, wedge based or neon lamps with the advantage of high shock and vibration resistance and extremely long life. The white LEDs expand the existing LED colours by an indicator light that is important in many applications.
