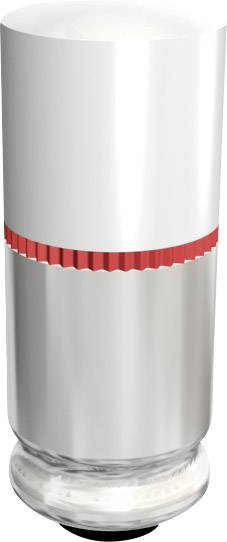

Signal Construct MWCG5704 LED indicator light Red MG 5.7 24 V DC, 24 V AC
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
24 V DC
24 V AC
Base
MG 5.7
Type
MWCG 5704
Factory colour
Red
Datasheet (PDF)
Number
Total (€ 2.34 / piece)
€ 8.39
-72 %
€ 2.34
plus VAT.
14 days return policy included
Highlights & Details
Signal Construct MWCG5704 LED indicator light Red MG 5.7 24 V DC, 24 V AC
Our service for you
Technical specifications
- Product type
LED indicator light
- Type
MWCG 5704
- Factory colour
Red
- Operating voltage
24 V DC
24 V AC
- Operating voltage
20, 20 - 28, 28 V DC, V AC
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
28 V DC
28 V AC
MG 5.7
- Radiation angle
160°
- Dim
(Ø x L) 5.6 mm x 15.8 mm
- Length
15.8 mm
- (Ø)
5.6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
0.3 W
at 24 V: 0.3 W
- Operating voltage
20 - 28 V DC/AC
Documents & Downloads
Datasheet
Datasheet 150604 Signal Construct MWCG5704 LED indicator light Red MG 5.7 24 V DC, 24 V AC
User & Safety Instructions
User & Safety Instructions 150604 Signal Construct MWCG5704 LED indicator light Red MG 5.7 24 V DC, 24 V AC
Description
With its high intensity and wide radiation angle this series replaces standard light bulbs. With an additional protective diode can also be used for AC/DC operation.
Hints
Central contact = anode
