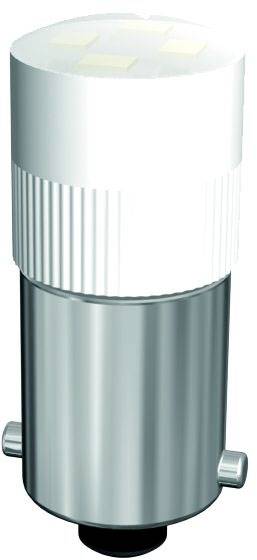

Signal Construct MWGB25529 LED bulb Warm white BA9s 12 V DC/AC
EAN:
Part number:
Item no:
Product type
LED bulb
Operating voltage
12 V DC/AC
Base
BA9s
Factory colour
Warm white
Head Ø
9.6 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Product type
LED bulb
- Factory colour
Warm white
- Operating voltage
12 V DC/AC
BA9s
- Head Ø
9.6 mm
- Radiation angle
160°
- LED features
4 Chip
- Dim
(Ø x H) 10 mm x 25 mm
- Length
25 mm
- Height
25 mm
- (Ø)
10 mm
100000
- Min. temperature
+70 °C
- Max. temperature
-30 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435478 Signal Construct MWGB25529 LED bulb Warm white BA9s 12 V DC/AC
User & Safety Instructions
User & Safety Instructions 2435478 Signal Construct MWGB25529 LED bulb Warm white BA9s 12 V DC/AC
Description
This multi-look LED lamp as a 4-chip
Design clearly Leuchtkraft
Standard 3W bulbs. By the
Control of the chip LED both a
Magnification of the radiation angle as well as on

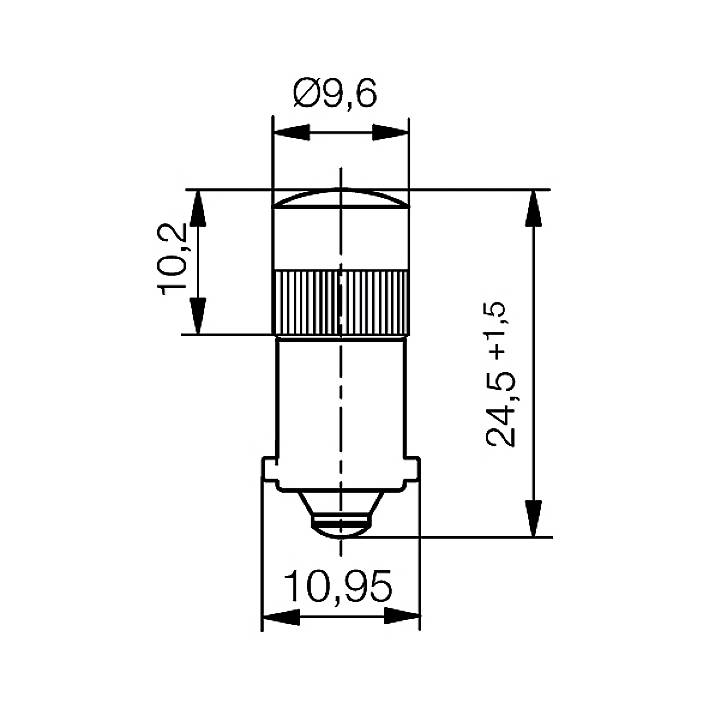

High mechanical protection achieved. Dimensions: Ø9,6 mm / length 25 mm
Socket: BA9s.
OPERATING VOLTAGE 6V,12V,24V,42V,60V +15% AC/DC
130V, 230V +10% AC/DC
IMPORTANT!
The 130V types must not be
Elements with integrated series resistor for
Operation of 130V lamps. For
These applications are exclusively used
Of our standard 230V types.
This text is machine translated.
Design clearly Leuchtkraft
Standard 3W bulbs. By the
Control of the chip LED both a
Magnification of the radiation angle as well as on
High mechanical protection achieved. Dimensions: Ø9,6 mm / length 25 mm
Socket: BA9s.
OPERATING VOLTAGE 6V,12V,24V,42V,60V +15% AC/DC
130V, 230V +10% AC/DC
IMPORTANT!
The 130V types must not be
Elements with integrated series resistor for
Operation of 130V lamps. For
These applications are exclusively used
Of our standard 230V types.
This text is machine translated.
