Signal Construct MWGE25589 LED bulb White E10 230 V AC
EAN:
Part number:
Item no:
Product type
LED bulb
Operating voltage
230 V AC
Base
E10
Recess diameter
9.6 mm
Factory colour
White
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Product type
LED bulb
- Factory colour
White
- Operating voltage
230 V AC
E10
- Recess diameter
9.6 mm
- Colour temperature
3000K
- Radiation angle
160°
- Dim
(Ø x H) 10 mm x 25 mm
- Length
25 mm
- Height
25 mm
- (Ø)
10 mm
100000
- Min. temperature
+70 °C
- Max. temperature
-30 °C
- RoHS-compliant
Yes
- Type (LEDs)
White
- Content
1 pc(s)
3000 K
- Colour temperature range
3000 K
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435489 Signal Construct MWGE25589 LED bulb White E10 230 V AC
User & Safety Instructions
User & Safety Instructions 2435489 Signal Construct MWGE25589 LED bulb White E10 230 V AC
Description

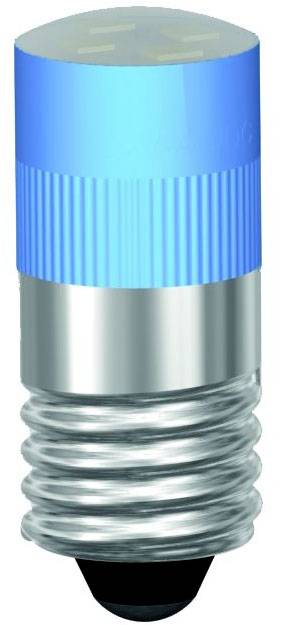

This multi-look LED lamp as a 4-chip
Design clearly Leuchtkraft
Standard 3W bulbs. By the
Control of the chip LED both a
Magnification of the radiation angle as well as on

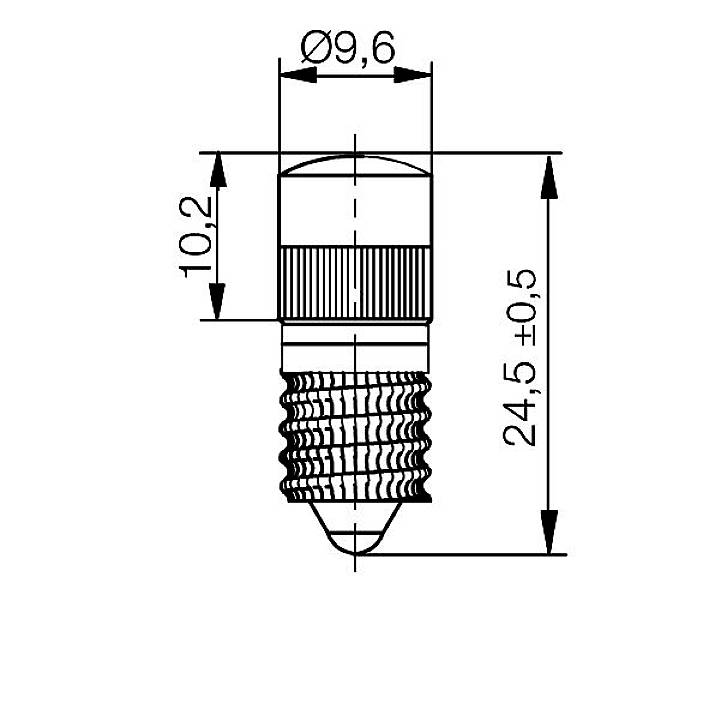

High mechanical protection achieved. Dimensions: Ø9,6 mm / length 25 mm
Socket: E10
OPERATING VOLTAGE 6V,12V,24V,42V,60V +15% AC/DC
130V, 230V +10% AC/DC
IMPORTANT!
The 130V types must not be
Elements with integrated series resistor for
Operation of 130V lamps. For
These applications are exclusively used
Of our standard 230V types.
This text is machine translated.
Design clearly Leuchtkraft
Standard 3W bulbs. By the
Control of the chip LED both a
Magnification of the radiation angle as well as on
High mechanical protection achieved. Dimensions: Ø9,6 mm / length 25 mm
Socket: E10
OPERATING VOLTAGE 6V,12V,24V,42V,60V +15% AC/DC
130V, 230V +10% AC/DC
IMPORTANT!
The 130V types must not be
Elements with integrated series resistor for
Operation of 130V lamps. For
These applications are exclusively used
Of our standard 230V types.
This text is machine translated.
