Signal Construct PGN25L050 Light pipe Through-hole mounting Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Light pipe
Mounting type
Through-hole mounting
Length
6 mm
Type
PGN25L050
Datasheet (PDF)
Number
Total (€ 0.10 / piece)
€ 0.10
plus VAT.
14-day return policy included
Highlights & Details
Single fiber optic cable Ø2,5 mm
Our service for you
Technical specifications
- Packaging type
Bulk
- Type
PGN25L050
- Product type
Light pipe
- Mounting type
Through-hole mounting
- Manufacturer
Signal Construct
- Lens shape
Circular
- Factory colour
Acrylic glass (matt)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Lens size (Ø)
3 mm
- Length
6 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 6 mm
- RoHS-compliant
Yes
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435519 Signal Construct PGN25L050 Light pipe Through-hole mounting Bulk
Description
Single fiber optic cable with spherical light head.

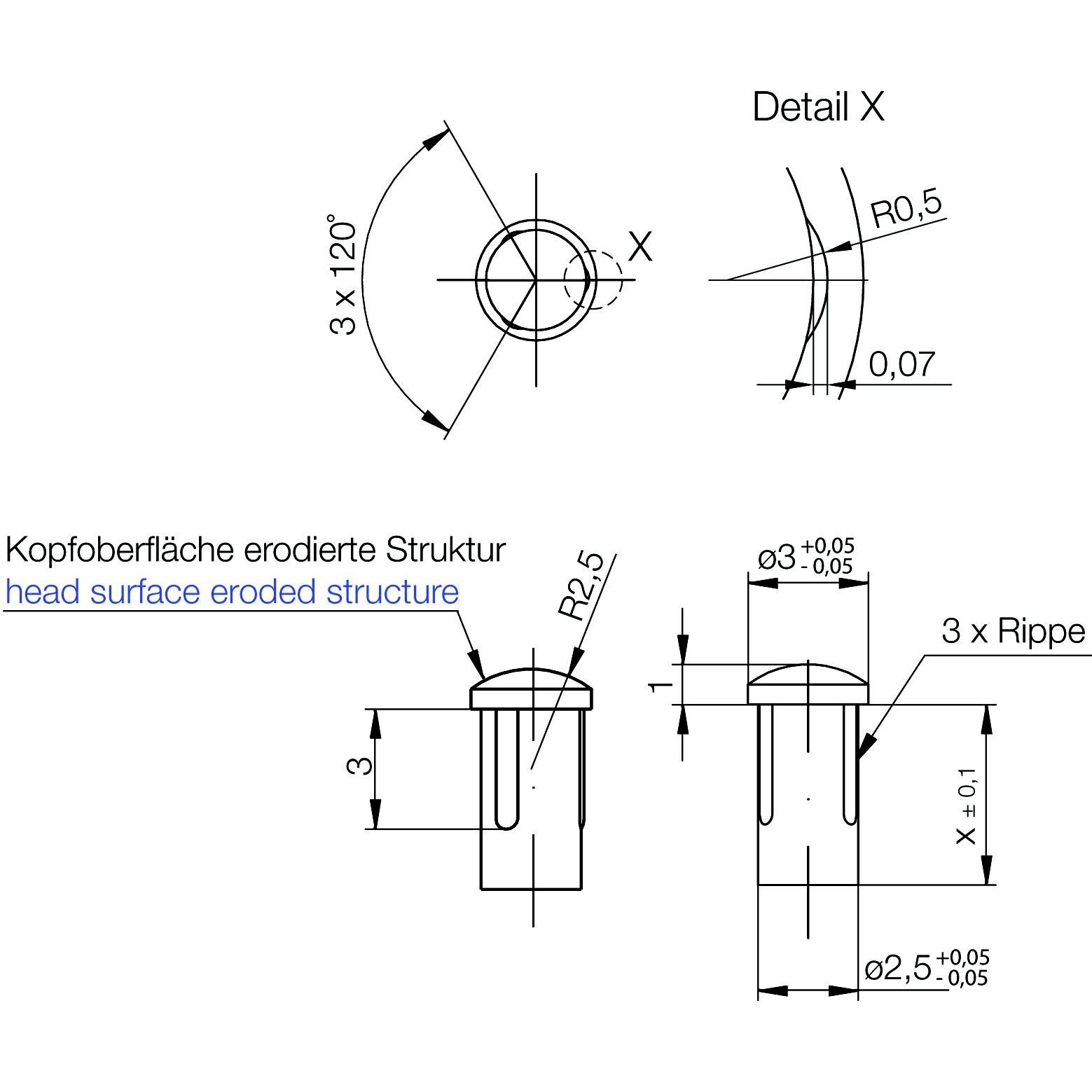

Fiber optic head with eroded structure. Mounting hole: Ø 2.6 -0.05 mm
Dimension x: Min. 1.8 mm / max. 40.0 mm
Fiber optic material: Plexiglass (PMMA)
This text is machine translated.
Fiber optic head with eroded structure. Mounting hole: Ø 2.6 -0.05 mm
Dimension x: Min. 1.8 mm / max. 40.0 mm
Fiber optic material: Plexiglass (PMMA)
