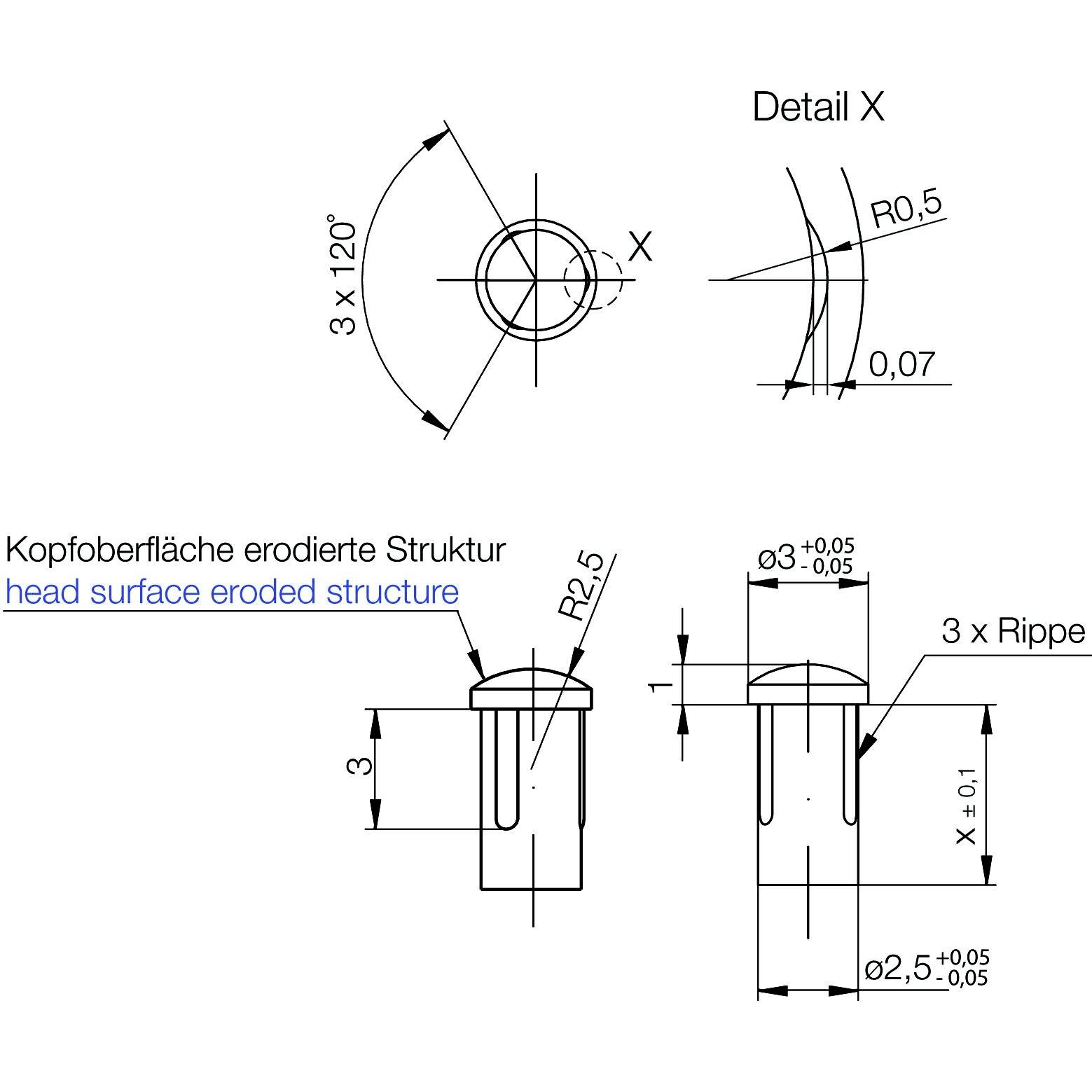

Technical drawing of a component with multiple views, including top view and cross-section. Detail X shows specific dimensions and structures.

1/2

Packaging type

Bulk

Product type

Light pipe

Mounting type

Through-hole mounting

Length

7 mm

Type

PGN25L060

Datasheet (PDF)

European union

Signal Construct

Fast track dispatch on Mon, 5 Oct

615 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 0.08 / piece)

€ 0.08

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Light pipe

Our service for you

Technical specifications

Packaging type: Bulk

Type: PGN25L060

Product type: Light pipe

Mounting type: Through-hole mounting

Manufacturer: Signal Construct

Lens shape: Circular

Factory colour: Acrylic glass (matt)

Operating temperature (min.): -40 °C

Operating temperature (max.): 105 °C

Lens size (Ø): 3 mm

Length: 7 mm

(Ø): 3 mm

Dim: (Ø x L) 3 mm x 7 mm

RoHS-compliant: Yes

Moisture Sensitiviy Level (MSL): 1

Documents & Downloads

Datasheet

European union

Datasheet 2435520 Signal Construct PGN25L060 Light pipe Through-hole mounting Bulk

Description

Single fiber optic cable with spherical light head.
Fiber optic head with eroded structure. Mounting hole: Ø 2.6 -0.05 mm
Dimension x: Min. 1.8 mm / max. 40.0 mm
Fiber optic material: Plexiglass (PMMA)
