Signal Construct SLQ08KL250M Light pipe Through-hole mounting Box-0

Signal Construct SLQ08KL250M Light pipe Through-hole mounting Box-0

Technical drawing of a screw valve with dimensions: total height 43 mm, diameter 9.5 mm, thread M8x0.75.

1/2

Packaging type

Box

Product type

Light pipe

Mounting type

Through-hole mounting

Length

26 mm

Type

SLQ08KL250M

Datasheet (PDF)

European union

Signal Construct

Fast track dispatch on Mon, 5 Oct

210 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.76 / piece)

€ 3.10

-11 %

€ 2.76

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Metal housing with fiber-optic cableOuter reflector

Our service for you

Technical specifications

Packaging type: Box

Type: SLQ08KL250M

Product type: Light pipe

Mounting type: Through-hole mounting

Manufacturer: Signal Construct

Lens shape: Circular

Factory colour: Acrylic glass (matt)

Operating temperature (min.): -40 °C

Operating temperature (max.): 105 °C

Lens size (Ø): 5 mm

Length: 26 mm

(Ø): 3 mm

Dim: (Ø x L) 3 mm x 26 mm

RoHS-compliant: Yes

Moisture Sensitiviy Level (MSL): 1

Documents & Downloads

Datasheet

European union

Datasheet 2435556 Signal Construct SLQ08KL250M Light pipe Through-hole mounting Box

User & Safety Instructions

User & Safety Instructions 2435556 Signal Construct SLQ08KL250M Light pipe Through-hole mounting Box

Description

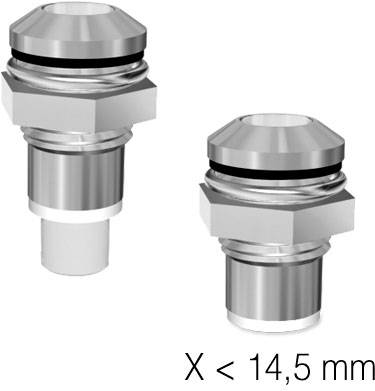

Metal housing with external reflector and
Integrated Ø5mm fiber optic cable.
Fiber optic surface matt. Casing: Metal casing bright chrome-plated
For screw fixing (thread M8x0.75)
Tightening torque: 40 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP67
Length of fiber optic cable x: Min. 5mm, max. 43mm

Scope of delivery: Lamp with lower ring,
Sealing washer and fixing nut

This text is machine translated.

Scope of delivery

Incl. attachment material
