Buy Signal Construct SMCP08121 LED indicator light Yellow 7 V DC Tray

A yellow push button with a metal actuator and two electrical terminals, suitable for mounting in an enclosure or control panel.

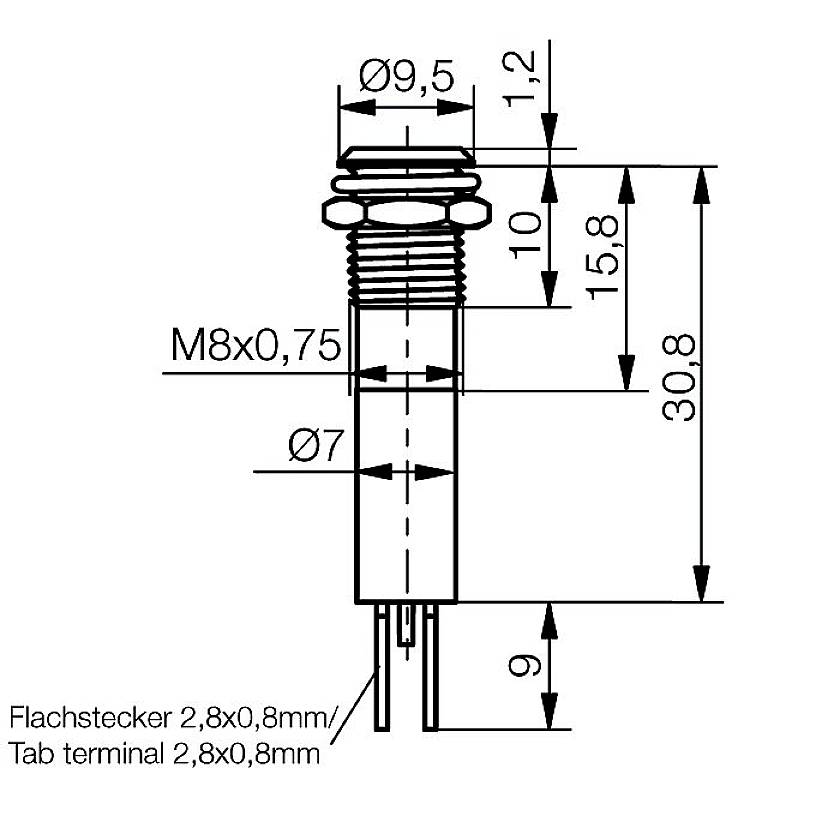

Drawing of a connector with M8x0.75 thread, diameter specifications (9.5 mm, 7 mm) and total height of 30.8 mm, with 2.8x0.8 mm flat plug.

1/2

Packaging type

Tray

Product type

LED indicator light

Operating voltage

7 V DC

Operating current

18 mA

Recess diameter

8 mm

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

39 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.76 / piece)

€ 2.76

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Tray

Product type: LED indicator light

Factory colour: Yellow

Operating voltage: 7 V DC

Operating voltage: 12 - 14 V DC

Min. operating voltage: 12 V DC

Max. operating voltage: 14 V DC

Operating current: 18 mA

Recess diameter: 8 mm

Head Ø: 9.5 mm

Case colour: Chrome (glossy)

Material: Brass

Material properties: chrome plated

Mounting type: Screw

: IP50

LED features: Built-in reflector

Connection: Type C CEE 7/16 plug 2.8 mm

Dim: (Ø) 8 mm

(Ø): 8 mm

Min. temperature: -30 °C

Max. temperature: 70 °C

Content: 1 pc(s)

Moisture Sensitiviy Level (MSL): 1

Documents & Downloads

Datasheet

Datasheet 2435558 Signal Construct SMCP08121 LED indicator light Yellow 7 V DC Tray

User & Safety Instructions

User & Safety Instructions 2435558 Signal Construct SMCP08121 LED indicator light Yellow 7 V DC Tray

Description

LED-signal lamp with inner reflector and
LED flat head for front panel mounting.
Delivery scope
Lamp with lower ring and mounting
nut housing: Metal housing bright chrome-plated
With thread M8x0.75mm
Mounting type: Screw fixing
Tightening torque: 100 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP50
Connection: 2x flat plug 2.8x0.8 mm
Soldering temperature 250°/3 sec.
Operating voltage:
12/14V, 24/28V DC - red, yellow, green
12/14V, 24/28V DC(AC) - blue, white
The current consumption/brightness for alternating
voltage is about 50% compared to DC operation
reduced.

This text is machine translated.
