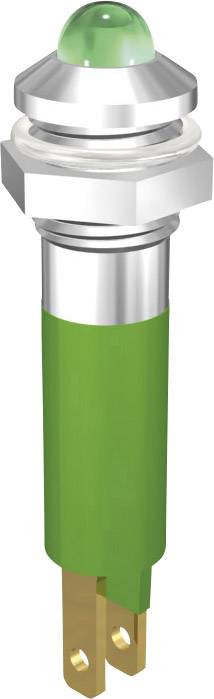

Buy Signal Construct SMQD08024 LED indicator light Red 24 V DC 22 mcd

Green LED pilot indicator light with metallic housing and mounting element, suitable for industrial or technical applications.

Image similar

Product type

LED indicator light

Operating voltage

24 V DC

Operating current

17 mA

Recess diameter

8 mm

Light intensity I(V)

22 mcd

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

949 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.61 / piece)

€ 5.87

-39 %

€ 3.61

plus VAT.

Report legal concerns

Highlights & Details

Signal Construct SMQD08024 LED indicator light Red 24 V DC 22 mcd

Our service for you

Technical specifications

Product type: LED indicator light

Type: SMQD08024

Factory colour: Red

Operating voltage: 24 V DC

Operating current: 17 mA

Recess diameter: 8 mm

Head Ø: 9.5 mm

Case colour: Red

Material: Brass

Material properties: chrome plated

Mounting type: Screw

Light intensity I(V): 22 mcd

LED features: External reflector

Connection: Type C CEE 7/16 plug 2.8 mm

Length: 40 mm

: 60000 h

Min. temperature: -35 °C

Max. temperature: 75 °C

RoHS-compliant: Yes

Type: External reflector

Content: 1 pc(s)

Temperature range: -35 - +75 °C

Operating voltage: 24 V DC

Documents & Downloads

Datasheet

Datasheet 149608 Signal Construct SMQD08024 LED indicator light Red 24 V DC 22 mcd

Conformity certificate

Conformity certificate 149608 Signal Construct SMQD08024 LED indicator light Red 24 V DC 22 mcd

Description

LED indicator for direct operation on the given nominal voltage. The series resistor required with standard LEDs is already inbuilt into the housing making standard wiring superfluous. And the chrome-plated brass housing, the wide working temperature range and long life make it incredibly versatile. Connection is by means of fast-on connections or soldering.
