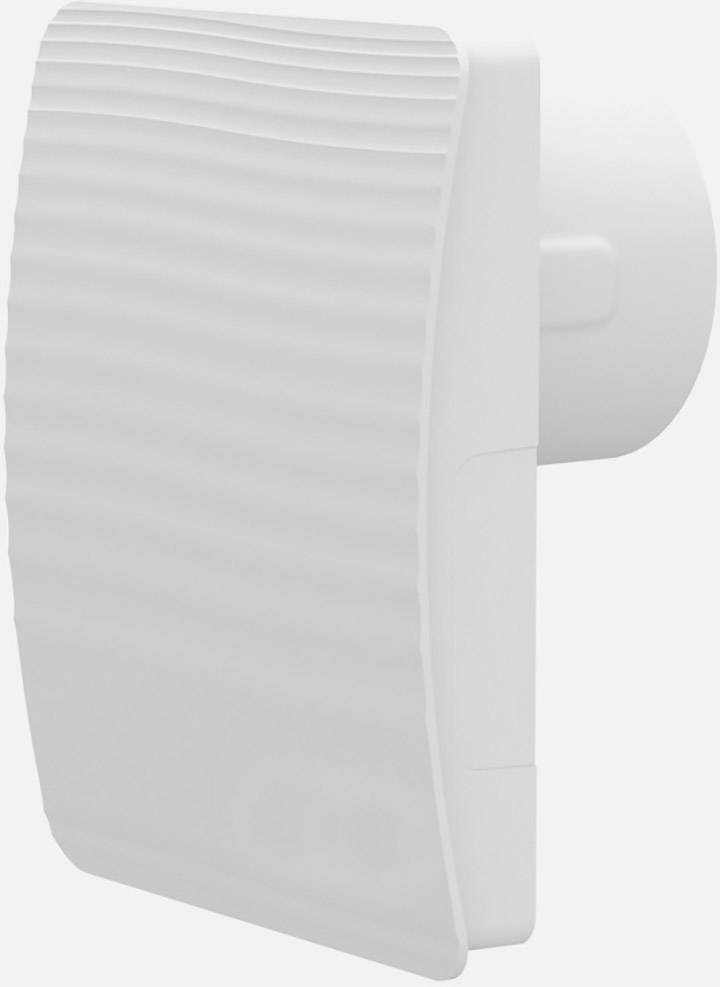

SIKU Exhaust air system 97 m³/h 50463
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SIKU 100 AC AS
- Incl. overheating protection.
- Removable fan unit for easy cleaning
- Suitable for continuous operation
Technical specifications
- Product type
Exhaust air system
9 W
- Air flow rate
97 m³/h
- Noise emission (max.)
25 dB
- Dim
(W x H x D) 175 x 221 x 116 mm
Doesn't apply
- Width
175 mm
- Height
221 mm
- Depth
116 mm
IP44
- Ventilation features
Automatic deflector blades
With time-delay relay
- Nominal voltage
230 V
- Rotational speed
2160 U/min
- Suitable for pipe Ø
100
- Nominal voltage range
220 - 240 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2149104 SIKU Exhaust air system 97 m³/h 50463
User & Safety Instructions
User & Safety Instructions 2149104 SIKU Exhaust air system 97 m³/h 50463
Warranty Terms
Warranty Terms 2149104 SIKU Exhaust air system 97 m³/h 50463
Description
Innovative, low-noise and energy-saving exhaust fan in stylish design with low noise level for intermittent or continuous ventilation of bathrooms, shower rooms, kitchens and other living rooms. SIKU 100 AC AS-T1-i is equipped with an on-delay timer (adjustable from 0 to 2 minutes), a delayed-start switch (adjustable from 2 to 30 minutes) and an interval timer (switches on the fan every 0, 6, 12 or 24 hours).
This text is machine translated.
This text is machine translated.
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
