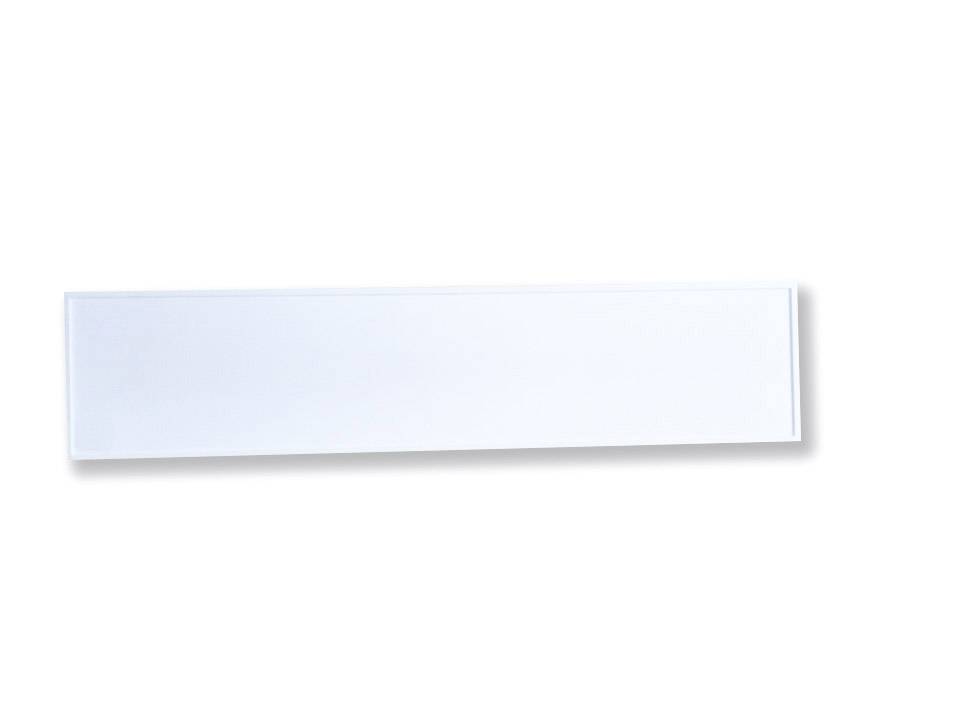

SIKU Ip-Pro Infrared heating 160 W 2 m² White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Infra-plate per IPP 160 WW
- Electrical conversion efficiency: 98%
- Easy wall mounting
- Heating element: Carbon crystal
Technical specifications
- Product type
Infrared heating
- Operating voltage
230 V
160 W
- Suitable for rooms up to
2 m²
- Mounting type
Wall
IP54
- Factory colour
White
- Dim

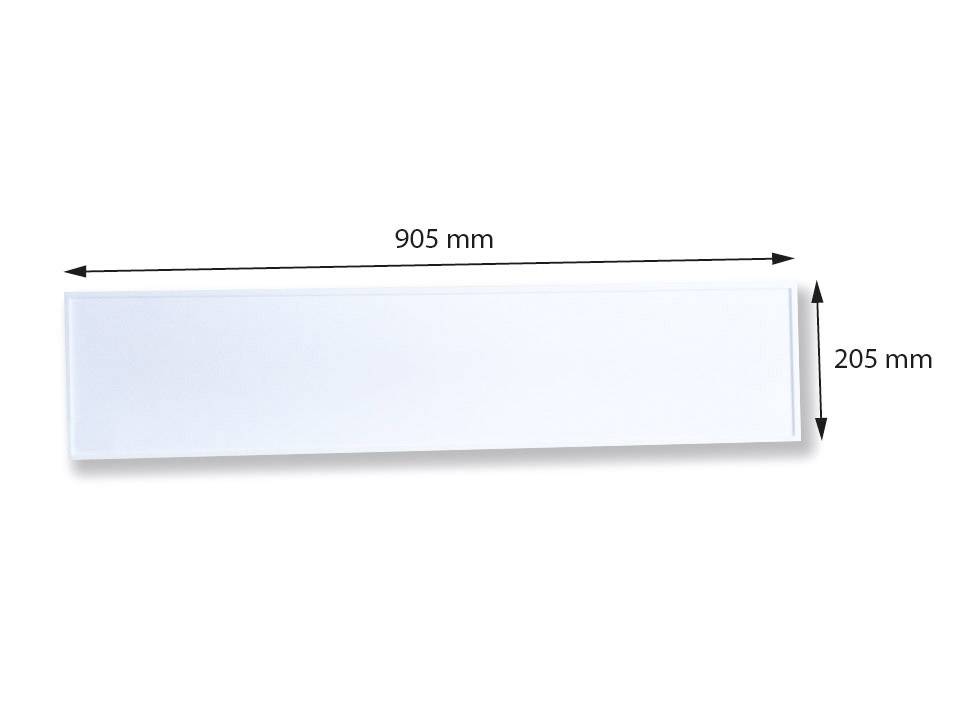

(L x W x H) 205 x 905 x 22 mm
- Weight
1.7 kg
- Feed length
1.9 m
- Width
905 mm
- Height
22 mm
- Length
205 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1874681 SIKU Ip-Pro Infrared heating 160 W 2 m² White
User & Safety Instructions
User & Safety Instructions 1874681 SIKU Ip-Pro Infrared heating 160 W 2 m² White
Warranty Terms
Warranty Terms 1874681 SIKU Ip-Pro Infrared heating 160 W 2 m² White
Description
Efficient, comfortable and health harmless heating system
This text is machine translated.
This text is machine translated.
Features
- Timeless and slim design
- Clean, noise-free as well as dust-free room climate
- Reduce air circulation
- Low acquisition and maintenance costs
- Very short and uniform heating-up phase
- Small space requirement
- Electrical conversion efficiency: 98%
- Overheating protection: Yes
- LED indicator lamp: yes only in models for wall mounting (WW)
- Cable length: 1.9 m
- Heating element: Carbon crystal
- Front material: white-coated aluminum
- Back material: aluminum
- Frame: Aluminum white
- Surface temperature: 75-95 °C
- Protection class: IP54
Scope of delivery
- Infrared heating plate
- User manual.
Hints
Info: The volume of new Erp-Norm 1188 infra-plate per infrared heaters may directly from 2018 only in combination with a room thermostat with time control and
Room ventilation detection can be operated!
