SIKU Radial extractor 230 V 1000 m³/h 200
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

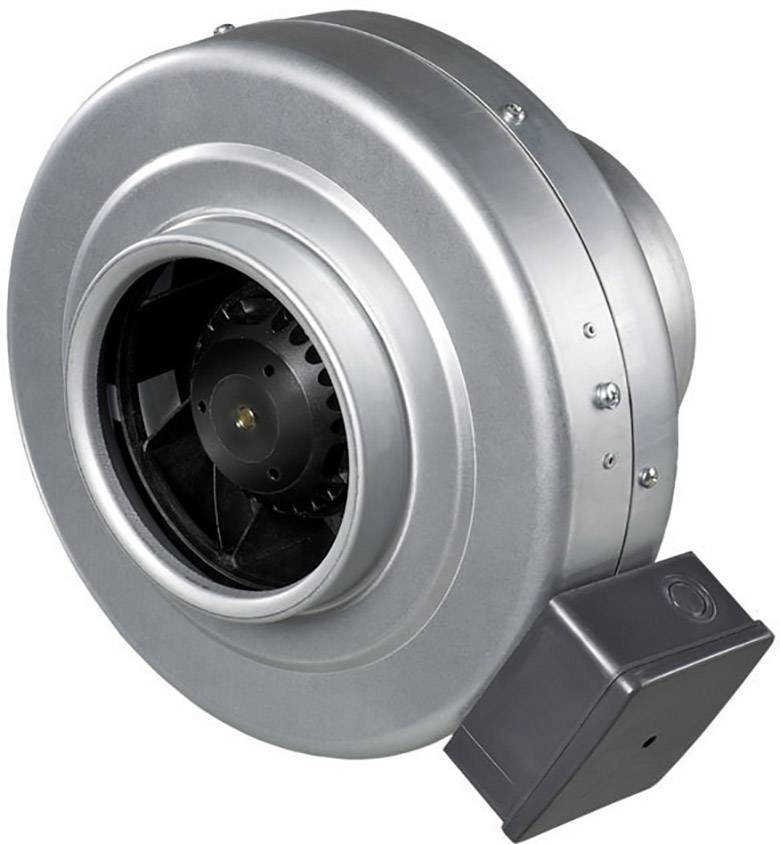

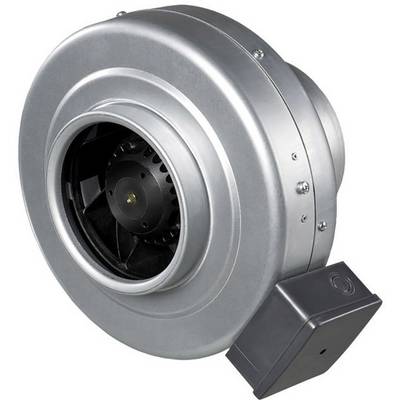

SIKU VKMz 200 Radial pipe fan
- External wall mounting possible
- Integrated overheat protection
- Can be mounted in any position.
Technical specifications
- Product type
Radial extractor
- Nominal voltage
230 V
157 W
- Rotational speed
2740 U/min
- Air flow rate
1000 m³/h
- Suitable for pipe Ø
200
- Noise emission (max.)
50 dB
IPX4
- Dim
(W x H x D) 332 x 332 x 245 mm
- Width
332 mm
- Height
332 mm
- Depth
245 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2149099 SIKU Radial extractor 230 V 1000 m³/h 200
User & Safety Instructions
User & Safety Instructions 2149099 SIKU Radial extractor 230 V 1000 m³/h 200
Warranty Terms
Warranty Terms 2149099 SIKU Radial extractor 230 V 1000 m³/h 200
Description
Innovative, low-noise and reliable pipe fan for ventilation and ventilation of different types of buildings. The VKMz series is recommended for rooms with high acoustic requirements.
