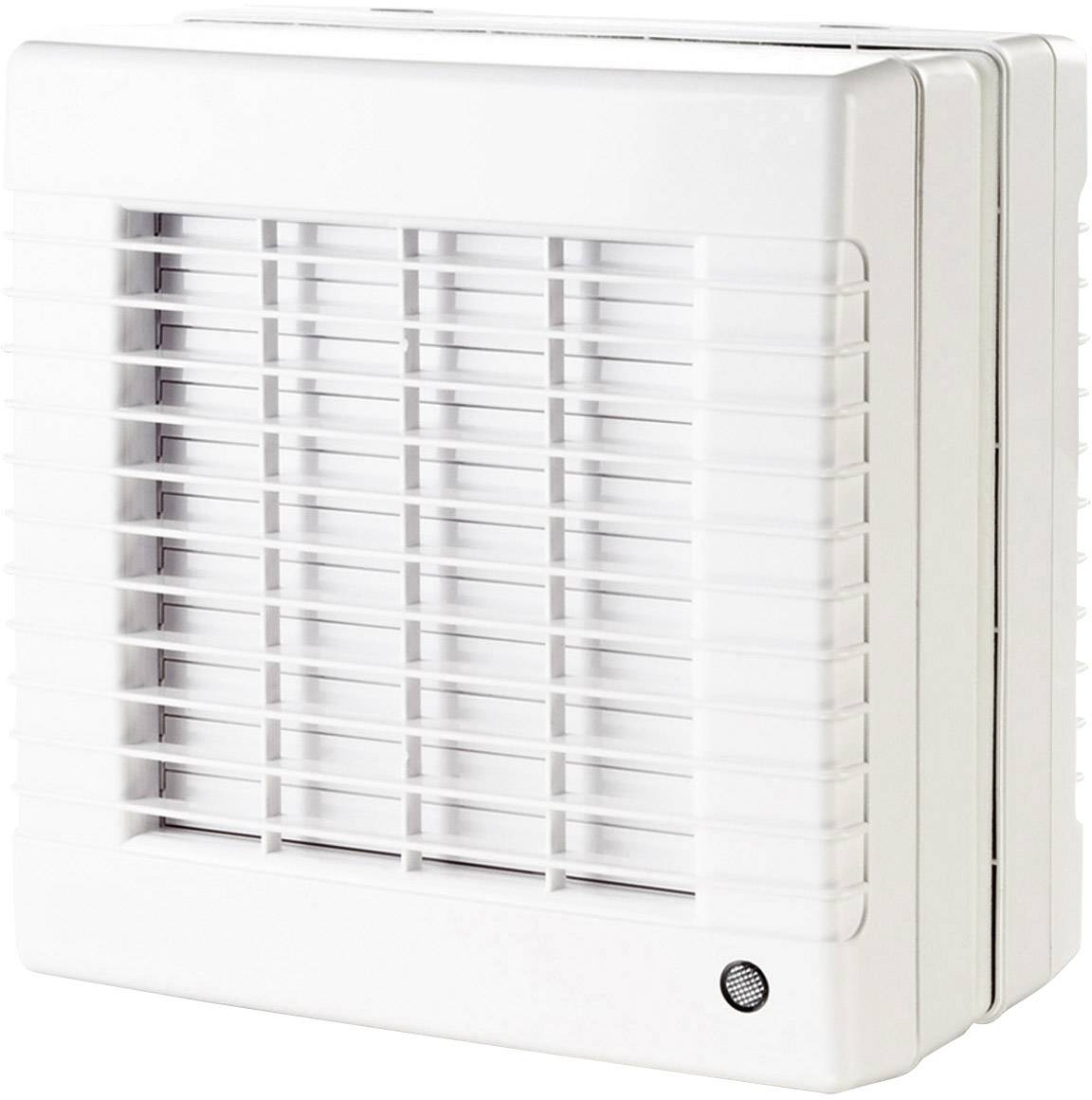

SIKU Wall and window fan 230 V 185 m³/h 125
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SIKU 125 MAO1 L
- Designed for direct installation in the window sill
- Integrated overheat protection
- Reliable motor with low power consumption
Technical specifications
- Product type
Wall and window fan
- Nominal voltage
230 V
- Nominal voltage range
220 - 240 V
22 W
- Rotational speed
2400 U/min
- Air flow rate
185 m³/h
- Suitable for pipe Ø
125
- Noise emission (max.)
35 dB
IP24
- Dim
(W x H x D) 190 x 173 x 111 mm
- Width
190 mm
- Height
173 mm
- Depth
111 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2149116 SIKU Wall and window fan 230 V 185 m³/h 125
User & Safety Instructions
User & Safety Instructions 2149116 SIKU Wall and window fan 230 V 185 m³/h 125
Warranty Terms
Warranty Terms 2149116 SIKU Wall and window fan 230 V 185 m³/h 125
Description
Innovative, low-noise and energy-saving axial fan for installing windows in a shapely design for permanent ventilation of kitchens and other living rooms. SIKU MAO1 L / SIKU MAO2 L are equipped with a ball bearing motor for long operating time and installation in any position. Designed for approx. 40,000 operating hours. The built-in thermal actuator ensures smooth opening and closing of the motor-operated closing flaps (automatic blind - opens after approx. 30 seconds of operation), which prevent a backflow.
