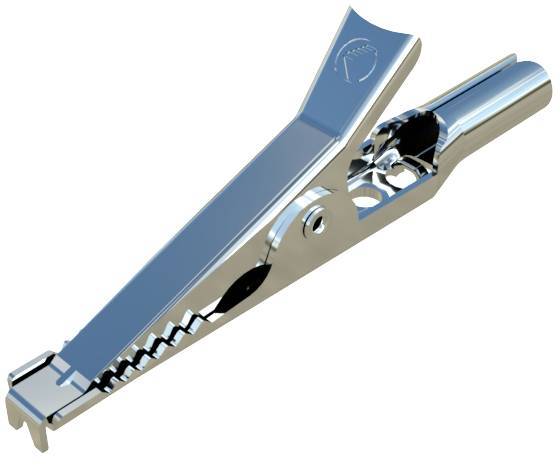

Hirschmann Test & Measurement AGF 30 Mini alligator clamp Silver Max. clamping range: 10 mm Length: 49 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini alligator clamp
Max. clamping range
10 mm
Length
49 mm
Nominal current - rounded value
4 A
Connection
Soldering
4 mm jack connector
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details
Hirschmann Test & Measurement AGF 30 Mini alligator clamp Silver Max. clamping range: 10 mm Length: 49 mm 1 pc(s)
- 60 V DC
- 4 A
Technical specifications
- Product type
Mini alligator clamp
- Max. clamping range
10 mm
- Length
49 mm
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Soldering
4 mm jack connector
- Factory colour
Silver
- Insulation type
Not insulated
- Jack diameter
4 mm
- Manufacturer part #
930122000
- Content
1 pc(s)
- Nominal voltage
60 V DC
- Type
AGF 30
- Max. resistance
15 mΩ
- Tip material
Stainless steel
- Connection
Solder lug
- Temperature range
-25 °C - +100 °C
Documents & Downloads
Datasheet
Datasheet 121780 Hirschmann Test & Measurement AGF 30 Mini alligator clamp Silver Max. clamping range: 10 mm Length: 49 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 121780 Hirschmann Test & Measurement AGF 30 Mini alligator clamp Silver Max. clamping range: 10 mm Length: 49 mm 1 pc(s)
Description
Stainless steel alligator clip. The special design allows you to grip both extremely fine and thick wires. For socket-plug or solder connection.
Features
- Contact and spring are rustproof and acid resistant
- Non-magnetic
- Contact resistance 15 mΩ
- Acid-resistant stainless steel
Hints
For gripping fine and thick wires, suitable for 4 mm Ø plug connections (banana plug) and solder connections.
