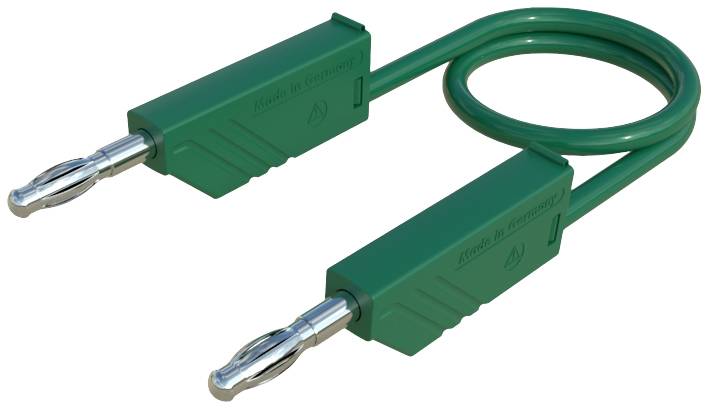

Hirschmann Test & Measurement CO MLN SIL 50/1 Test lead Banana jack 4 mm Banana jack 4 mm 0.50 m Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
95 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€
Technical specifications
- Temperature resistant insulation material: -60 to +180 °C
- Product type
Test lead
- Type A
Banana jack 4 mm
- Type B
Banana jack 4 mm
- Cable length
0.50 m
- Factory colour
Green
- Plug features
Nestable
- Material
Silicone
- Cable cross section
1 mm²
- Nominal voltage
60 V DC
- Diameter/connectortype
4 mm Stecker, can be stacked
- Temperature range
-60 to +180 °C
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Jack diameter
4 mm
- Contact material
Ni
- Reading category
CAT I
- Type
CO MLN SIL 50/1
- Length
500 mm
- Nominal current (details)
16 A
Documents & Downloads
Datasheet
Datasheet 122634 Hirschmann Test & Measurement CO MLN SIL 50/1 Test lead Banana jack 4 mm Banana jack 4 mm 0.50 m Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 122634 Hirschmann Test & Measurement CO MLN SIL 50/1 Test lead Banana jack 4 mm Banana jack 4 mm 0.50 m Green 1 pc(s)
Description
The design and specification of this silicone test lead are similar to those of the 1 mm² PVC lead. Silicone has a high flexibility, even at low temperature. Survives short contact with a soldering iron.
