Hirschmann Test & Measurement KLEPS 2 BU sw Test probe 2 mm jack connector Ohne Messkategorie Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Highlights & Details
Miniature Clip probe tip KLEPS2 female black
- 2 mm
- Black
Technical specifications
- Product type
Test probe
- Connection
2 mm jack connector
- Clamping range diameter mm
2 mm
- Max. clamping range
2 mm
- Factory colour
Black
- Nominal voltage
30 V AC
60 V DC
- Reading category
Ohne Messkategorie
- Jack diameter
2 mm
- Tip material
Bronze, gold-plated
- Max. resistance
10 mΩ
- Content
1 pc(s)
- Nominal current
6 A
- Shaft length
35 mm
- Temperature range
-25 to +100 °C
- Type
KLEPS 2 BU sw
Documents & Downloads
Datasheet
Datasheet 405579 Hirschmann Test & Measurement KLEPS 2 BU sw Test probe 2 mm jack connector Ohne Messkategorie Black
User & Safety Instructions
User & Safety Instructions 405579 Hirschmann Test & Measurement KLEPS 2 BU sw Test probe 2 mm jack connector Ohne Messkategorie Black
Description

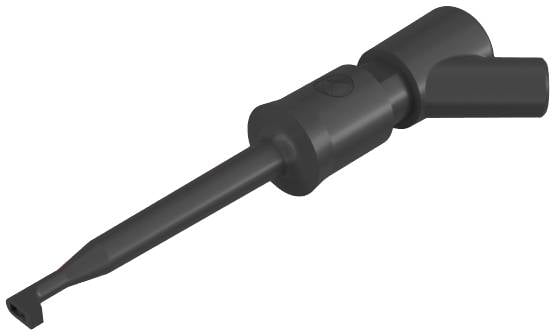

Mini test clips with socket plug-in connection 2 mm diameter. Contact spring made of gold-plated copper-beryllium. Contact hook made of gold-plated spring bronze for wires up to 2 mm diameter. For attaching to wrap post up to max. 1 x 1 mm.
This text is machine translated.
This text is machine translated.
Features
- Socket plug-in connection 2 mm diameter
- Contact spring made of gold-plated copper-beryllium.
