Hirschmann Test & Measurement KLEPS 2600 rt Safety terminal 4 mm jack connector CAT II Red
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14 days return policy included
Highlights & Details
Kleps 2600 grip test probe
- 4 mm
- Red
Technical specifications
- Product type
Safety terminal
- Connection
4 mm jack connector
- Clamping range diameter mm
4 mm
- Max. clamping range
3 mm
- Factory colour
Red
- Nominal voltage
1000 V
- Reading category
CAT II
- Jack diameter
4 mm
- Length
158 mm
- Tip material
Spring steel, nickel-plated
- Max. resistance
50 mΩ
- Content
1 pc(s)
- Nominal current
4 A
- Shaft length
100 mm
- Temperature range
-25 - +80 °C
- Type
KLEPS 2600 rt
Documents & Downloads
Datasheet
Datasheet 137634 Hirschmann Test & Measurement KLEPS 2600 rt Safety terminal 4 mm jack connector CAT II Red
User & Safety Instructions
User & Safety Instructions 137634 Hirschmann Test & Measurement KLEPS 2600 rt Safety terminal 4 mm jack connector CAT II Red
Information
Information 137634 Hirschmann Test & Measurement KLEPS 2600 rt Safety terminal 4 mm jack connector CAT II Red
Description

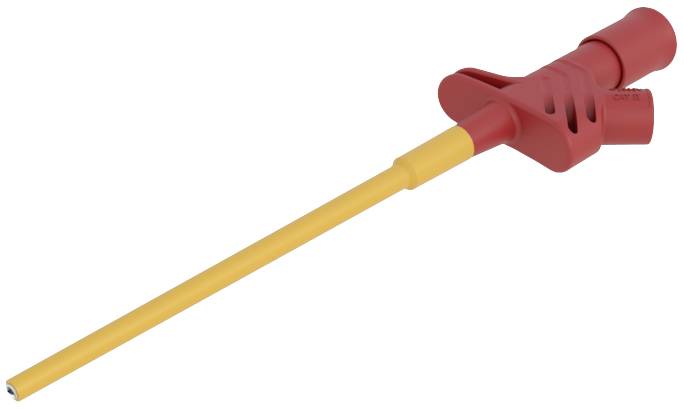

Probe tip with rotating grip and flexible shaft (yellow). Grips up to max. 4 mm Ø. Suitable for safety test leads with fixed insulation sleeves and sliding sleeves.
