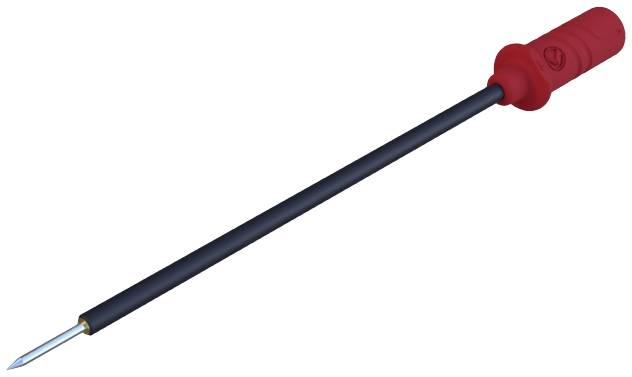

Hirschmann Test & Measurement Micro-Pruef MPS 2/0,64 FT rt Test probe 973995101 0.64 mm jack connector Ohne Messkategori
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details
Micro-test red
- Ohne Messkategorie
- Nominal current 1 A
- Socket Ø 0.64 mm;Red
Technical specifications
- Product type
Test probe
- Connection
0.64 mm jack connector
- Nominal voltage
60 V DC
- Factory colour
Red
- Reading category
Ohne Messkategorie
- Jack diameter
0.64 mm
- Length
69 mm
- Tip diameter
0.75 mm
- Tip length
6.9 mm
- Tip material
Stainless steel
- Max. resistance
16 mΩ
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Shaft length
53 mm
- Temperature range
-25 °C - +80 °C
Documents & Downloads
Datasheet
Datasheet 104434 Hirschmann Test & Measurement Micro-Pruef MPS 2/0,64 FT rt Test probe 973995101 0.64 mm jack connector Ohne Messkategori
User & Safety Instructions
User & Safety Instructions 104434 Hirschmann Test & Measurement Micro-Pruef MPS 2/0,64 FT rt Test probe 973995101 0.64 mm jack connector Ohne Messkategori
Description
Mini probe tips with spring-loaded tips made of stainless steel for touching measurement points on small printed circuits (SMD technology). No slipping and constant pressure due to the spring-loaded probe tips. Shaft (Ø 1.4 mm) powder-coated. 1 connection via the gold-plated pin Ø 0.64 mm.
