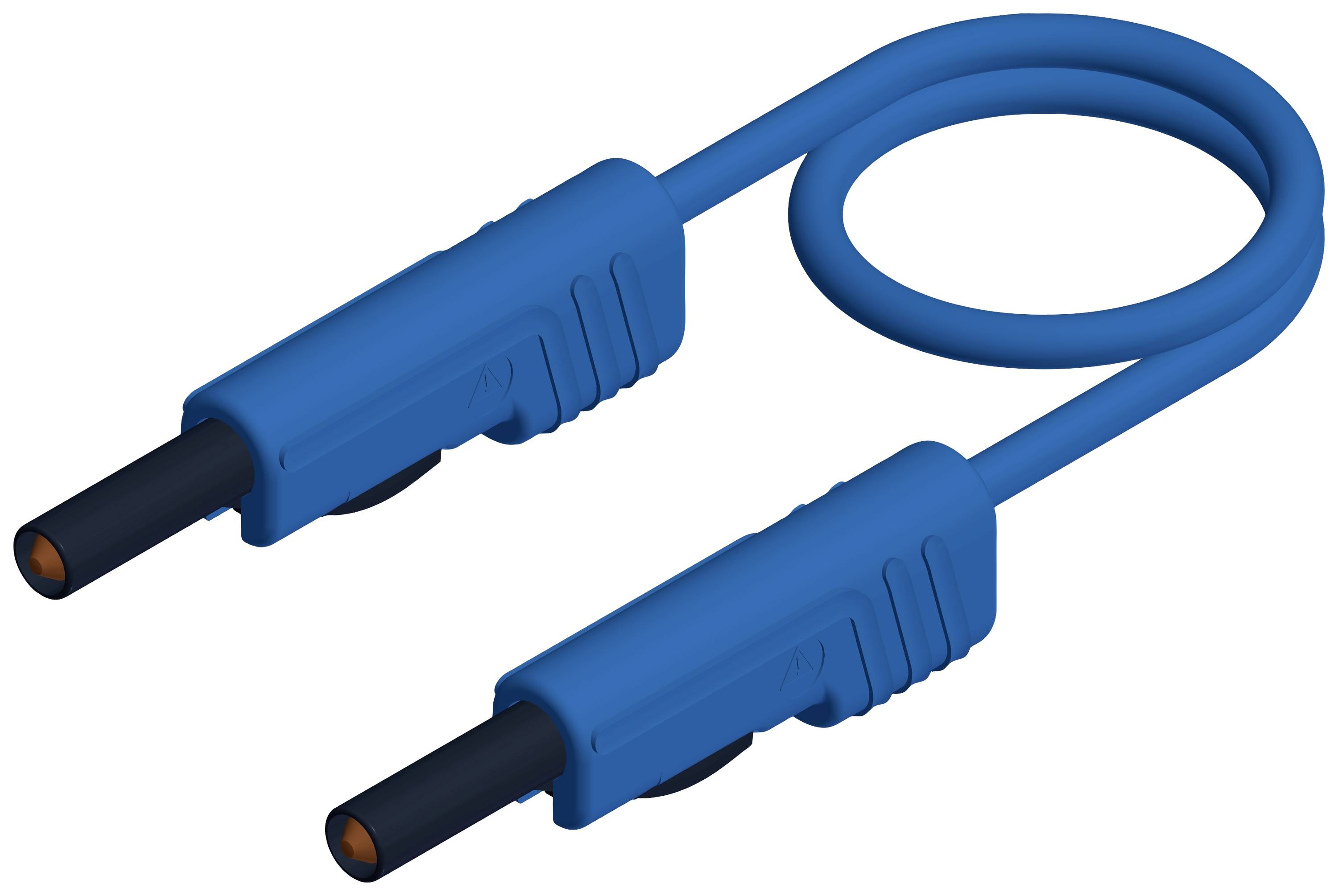

Hirschmann Test & Measurement MLB 200/1 V bl Test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Blue 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
14-day return policy included
Highlights & Details
4 mm test lead, contact-protected, stackable, 200 cm
- contact-protected test lead with stackable sliding sleeve plugs Ø 4 mm, 200 cm
Technical specifications
- Product type
Test lead
- Type A
Banana jack 4 mm
- Type B
Banana jack 4 mm
- Cable length
2.00 m
- Factory colour
Blue
- Plug features
Sleeve
Nestable
- Material
PVC
- Cable cross section
1 mm²
- Nominal voltage
30 V AC
60 V DC
- Diameter/connectortype
4 mm sliding sleeve system
- Temperature range
-15 °C to +70 °C °C
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Contact material
Ni
- Reading category
CAT I
- Width
11 mm
- Height
17.5 mm
- Type
MLB 200/1 V bl
- Nominal current (details)
16 A
- Reading category
CAT I
Documents & Downloads
Datasheet
Datasheet 679194 Hirschmann Test & Measurement MLB 200/1 V bl Test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 679194 Hirschmann Test & Measurement MLB 200/1 V bl Test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Blue 1 pc(s)
Description
Contact-protected measuring lead, at either end: 4 mm diameter plug, insulated by latching and sprung insulated sleeve which is only released by pressure on the side-mounted locking spring. 4 mm diameter nickel-plated. Highly flexible, double insulated stranded conductor. Color indicator for the recognition of damage to the insulation. Socket to the far pluginess.
Features
- Highly flexible, double insulated stranded lead. Built in colour indicator for easy identification of insulation damages.
Scope of delivery
- 1 x measuring lead
