Buy Hirschmann Test & Measurement MLN 100/2,5 GR Test lead Banana jack 4 mm Banana jack 4 mm 1.00 m Grey 1 pc(s)

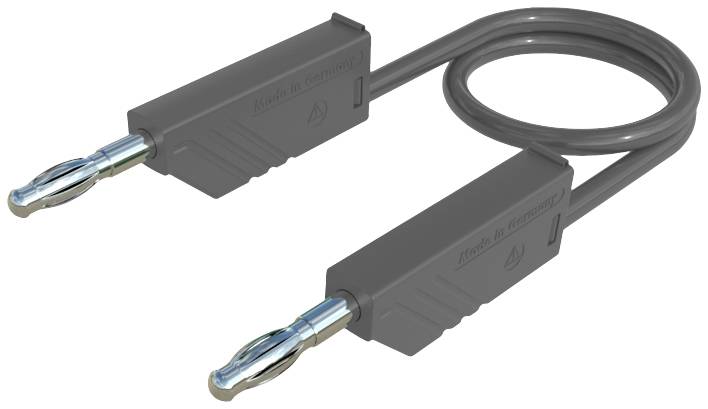

Grey banana plug cable with two plugs and a loop, used for speaker connections or electrical testing.

Datasheet (PDF)

37 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€

Report legal concerns

Highlights & Details

4mm PVC-test lead, on both sides stackable plugs, 2,5mm², 100 cm

Highly flexible, double insulated PVC-test lead, stackable plugs Ø 4mm, 100 cm

Technical specifications

Factory colour: Grey

Cable cross section: 2.5 mm²

Diameter/connectortype: 4 mm system

Temperature range: -15 °C to +70 °C °C

Nominal current: 32 A

Nominal current - rounded value: 32 A

Cable length: 1.00 m

Type A: Banana jack 4 mm

Type B: Banana jack 4 mm

Height: 15 mm

Width: 7.5 mm

Material: PVC

Reading category: CAT I

Plug features: Nestable

Type: MLN 100/2,5 GR

Nominal voltage: 30 V AC
60 V DC

Nominal current (details): 32 A

Contact material: Ni

Reading category: CAT I

Product type: Test lead

Documents & Downloads

Datasheet

Datasheet 678913 Hirschmann Test & Measurement MLN 100/2,5 GR Test lead Banana jack 4 mm Banana jack 4 mm 1.00 m Grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 678913 Hirschmann Test & Measurement MLN 100/2,5 GR Test lead Banana jack 4 mm Banana jack 4 mm 1.00 m Grey 1 pc(s)

Description

Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
