Buy Hirschmann Test & Measurement MLS SIL WS 200/1 Safety test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Red 1 pc(s)

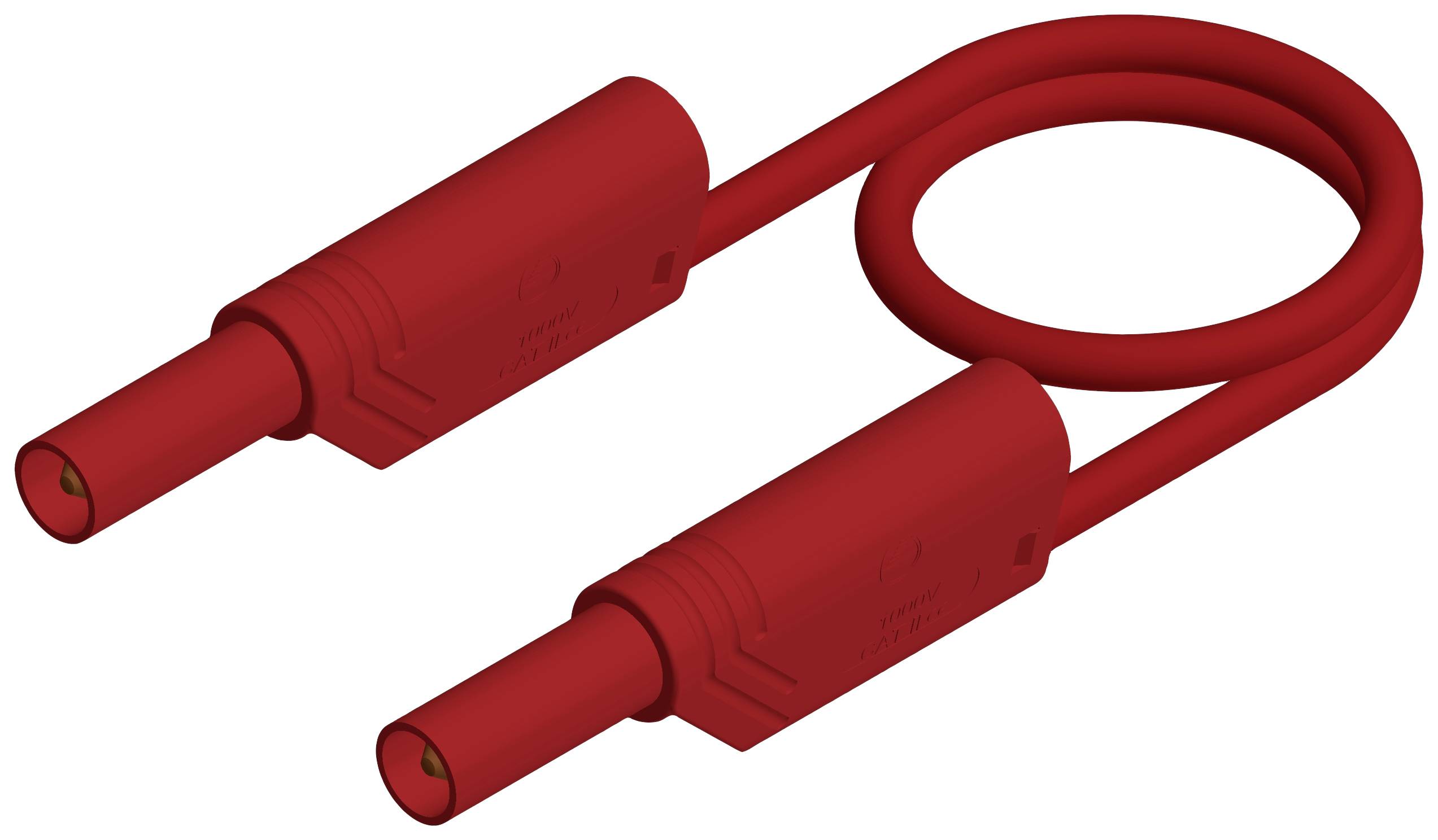

Red electrical cable with two plug ends, one side formed into a loop. Suitable for low-voltage connections.<br><br>Note: The translation appears to already be in British English, so no significant changes were needed.

Datasheet (PDF)

42 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 19.32 / piece)

€

Report legal concerns

Highlights & Details

4 mm safety test lead, silicone, 2x stackabler plugs, 200 cm

silicone safety test lead 1000 V / CAT II, stackable plugs Ø 4 mm, 200 cm

Technical specifications

Product type: Safety test lead

Type A: Banana jack 4 mm

Type B: Banana jack 4 mm

Cable length: 2.00 m

Factory colour: Red

Plug features: Scoop-proof
Nestable

Material: Silicone

Cable cross section: 1 mm²

Nominal voltage: 1000 V

Diameter/connectortype: 4 mm safety system

Temperature range: -15 °C to +70 °C °C

Nominal current: 16 A

Nominal current - rounded value: 16 A

Contact material: Ni

Reading category: CAT II 1000 V

Width: 10.5 mm

Height: 18.5 mm

Type: MLS SIL WS 200/1

Nominal current (details): 16 A

Reading category: CAT II

Documents & Downloads

Datasheet

Datasheet 679237 Hirschmann Test & Measurement MLS SIL WS 200/1 Safety test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 679237 Hirschmann Test & Measurement MLS SIL WS 200/1 Safety test lead Banana jack 4 mm Banana jack 4 mm 2.00 m Red 1 pc(s)

Description

Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4 mm socket). Nickel-plated copper beryllium contact spring. Highly flexible, double insulated silicone lead, heat resistant, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages.
