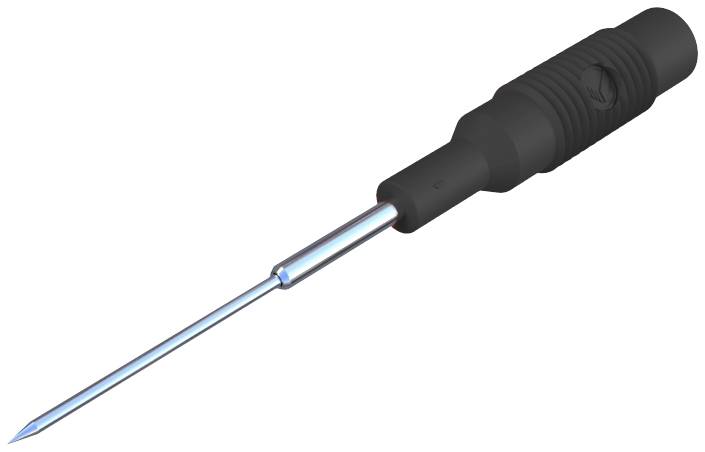

Hirschmann Test & Measurement MZS 1 - PRUEF sw Test tip 973601100 4 mm jack connector Ohne Messkategorie Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 10.08
-25 %
€ 7.55
plus VAT.
Highlights & Details
Needle-shaped, long stainless steel test probe with 4 mm socket
- 1 mm stainless steel test probe, unsprung with 4 mm socket connection
Technical specifications
- Product type
Test tip
- Connection
4 mm jack connector
- Nominal voltage
30 V AC
60 V DC
- Factory colour
Black
- Reading category
Ohne Messkategorie
- Jack diameter
4 mm
- Length
68 mm
- Tip diameter
1 mm
- Tip length
22 mm
- Tip material
Stainless steel
- Max. resistance
10 mΩ
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Max. length
68 mm
- Width
8 mm
- Height
8 mm
- Shaft length
34 mm
- Temperature range
-20 °C to +60 °C °C
- Diameter/connectortype
4 mm system
- Reading category
CAT I
Documents & Downloads
Datasheet
Datasheet 679263 Hirschmann Test & Measurement MZS 1 - PRUEF sw Test tip 973601100 4 mm jack connector Ohne Messkategorie Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 679263 Hirschmann Test & Measurement MZS 1 - PRUEF sw Test tip 973601100 4 mm jack connector Ohne Messkategorie Black 1 pc(s)
Description
Needle shaped, long stainless steel test probe with shatter-proof insulated sleeve and unsprung 4 mm contacting socket. During state of connection or operation of test leads, it is possible to measure with the test probe from the back side of the closed connector.
Features
- During state of connection or operation of test leads, it is possible to measure with the test probe from the back side of the closed connector.
Scope of delivery
- 1 x test probe
