Hirschmann Test & Measurement PKI 100 Pole terminal Yellow, Green 35 A 1 pc(s)
EAN:
Part number:
Item no:
Nominal current - rounded value
35 A
Content
1 pc(s)
Connection
Screws
Insulation type
Insulated
Product type
Pole terminal
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Highlights & Details
Hirschmann Test & Measurement PKI 100 Pole terminal Yellow, Green 35 A 1 pc(s)
- Yellow, Green
- 35 A
Our service for you
Technical specifications
- Wall thickness: max. 3.5 mm
- Nominal current
35 A
- Nominal current - rounded value
35 A
- Dim
(Ø x L) 15 mm x 41.5 mm
- Manufacturer part #
930757188
- Type
PKI 100
- Content
1 pc(s)
- Factory colour
Yellow
Green
- (Ø)
15 mm
- Length
41.5 mm
- Connection
Screws
- Insulation type
Insulated
- Material (details)
Threaded bolt: Nickel-plated brass
- Nominal voltage
60 V
- Wall thickness (details)
3.5 mm
- Connection
Screw connector
- Pin diameter
4 mm
- RoHS-compliant
Yes
- Product type
Pole terminal
Documents & Downloads
Datasheet
Datasheet 733928 Hirschmann Test & Measurement PKI 100 Pole terminal Yellow, Green 35 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 733928 Hirschmann Test & Measurement PKI 100 Pole terminal Yellow, Green 35 A 1 pc(s)
Description
PKI 100

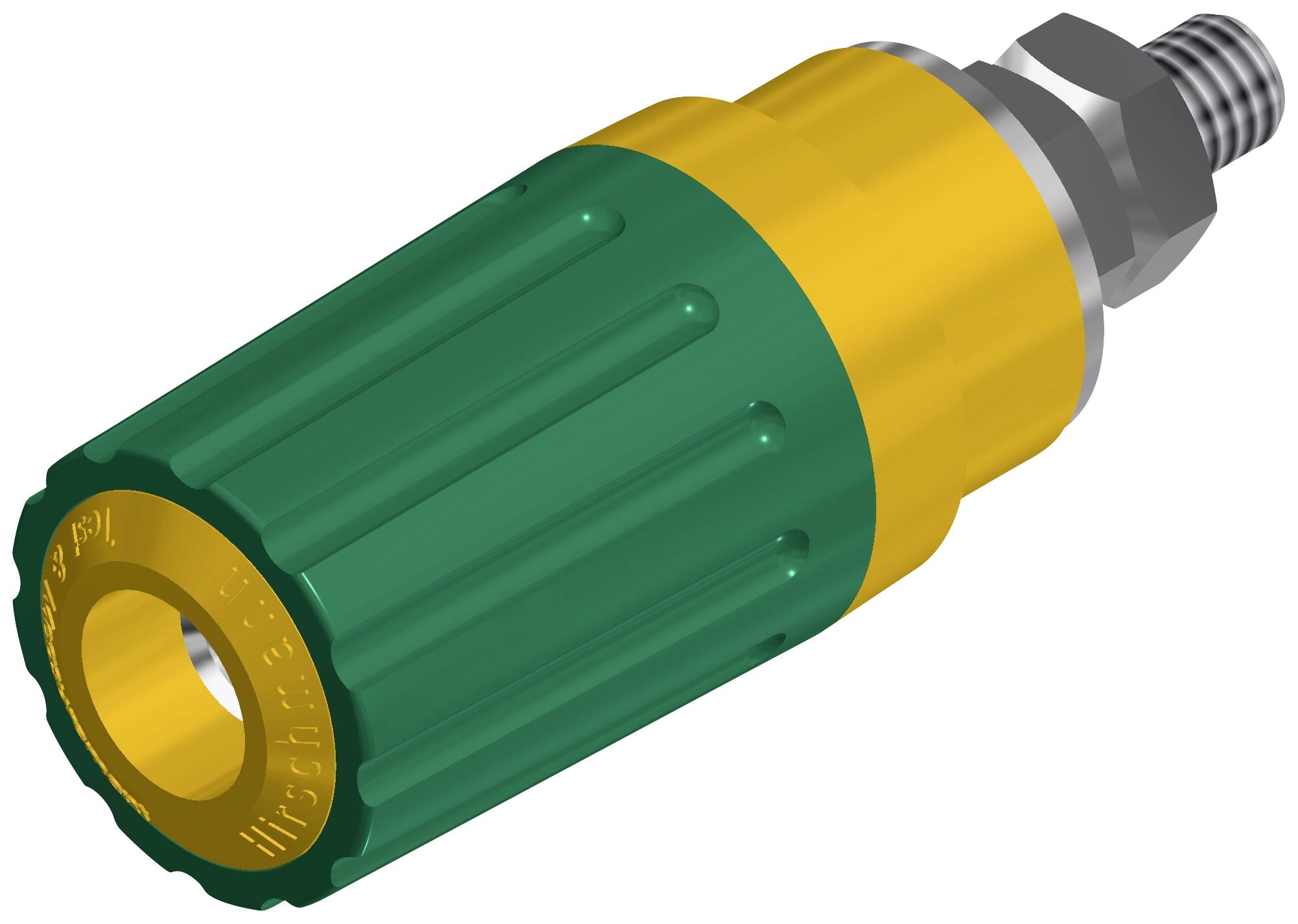

PKI 100 With securely joined insulation cap, which is pressed against the insulation rings by a spring. This allows wires or terminals to be connected quickly and easily. The threaded bolt (Ø 4 mm) is made of nickel-plated brass and has a 2mm diameter cross-hole. For twist-free mounting in switch panels with up to 3.5 mm wall thickness.
