Hirschmann Test & Measurement PL 3 Test lead 4 mm plug Banana jack 4 mm 1.00 m Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 14.28
-18 %
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Test lead
- Type A
4 mm plug
- Type B
Banana jack 4 mm
- Cable length
1.00 m
- Factory colour
Black
- Material
PVC
- Cable cross section
1 mm²
- Nominal voltage
30 V AC
60 V DC
- Diameter/connectortype
4 mm system
- Temperature range
-15 to +70 °C
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Jack diameter
4 mm
- Contact material
Brass nickel plated
- Reading category
CAT I
- Type
PL 3
Documents & Downloads
Datasheet
Datasheet 1762636 Hirschmann Test & Measurement PL 3 Test lead 4 mm plug Banana jack 4 mm 1.00 m Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1762636 Hirschmann Test & Measurement PL 3 Test lead 4 mm plug Banana jack 4 mm 1.00 m Black 1 pc(s)
Description

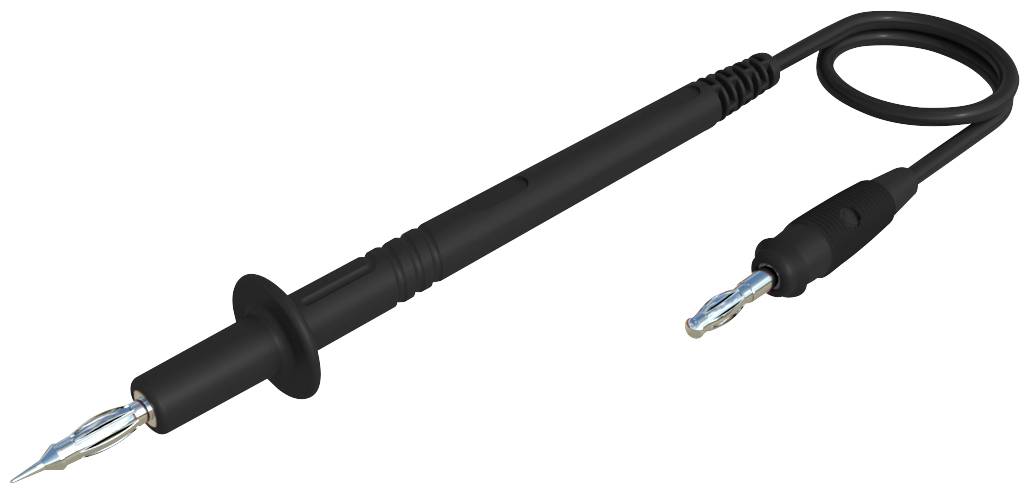

Test lead with double-function test probe. Tip for penetrating insulated or oxidised layers and 4 mm diameter pin to be plugged into the sockets. 4 mm diameter plug with spring-cage, straight outlet. Highly flexible, double insulated stranded wire with integrated indicator color shows insulation damage.
This text is machine translated.
This text is machine translated.
Features
- Incl. Tip Protection
