Hirschmann Test & Measurement PRUEF 1610 FT Au rt Safety test probe 975018701 2 mm jack connector CAT II 1000 V Red 1 pc
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details
Safety test tip PRUEF 1610 FT Au red
- CAT II 1000 V
- Nominal current 10 A
- Socket Ø 2 mm;Red
Technical specifications
- Product type
Safety test probe
- Connection
2 mm jack connector
- Nominal voltage
1000 V
- Factory colour
Red
- Reading category
CAT II 1000 V
- Jack diameter
2 mm
- Tip diameter
0.75 mm
- Tip material
Eelstahl
- Max. resistance
20 mΩ
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Temperature range
-25 to +70 °C
Documents & Downloads
Datasheet
Datasheet 405577 Hirschmann Test & Measurement PRUEF 1610 FT Au rt Safety test probe 975018701 2 mm jack connector CAT II 1000 V Red 1 pc
User & Safety Instructions
User & Safety Instructions 405577 Hirschmann Test & Measurement PRUEF 1610 FT Au rt Safety test probe 975018701 2 mm jack connector CAT II 1000 V Red 1 pc
Description

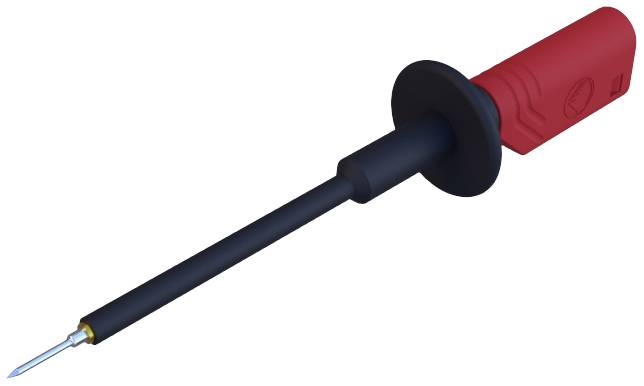

Probe tip with insulating sleeve and slim, sprung stainless steel tip. 2 mm gold-plated brass connection socket, can be plugged with 2 mm safety lead MVL S WS. With the test tip can pierce insulation and oxide layers.
This text is machine translated.
This text is machine translated.
Features
- 2 mm connection socket gold-plated brass
- Spring-loaded tip.
