Hirschmann Test & Measurement PRUEF 2 rt Test tip 973368101 4 mm jack connector Ohne Messkategorie Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details

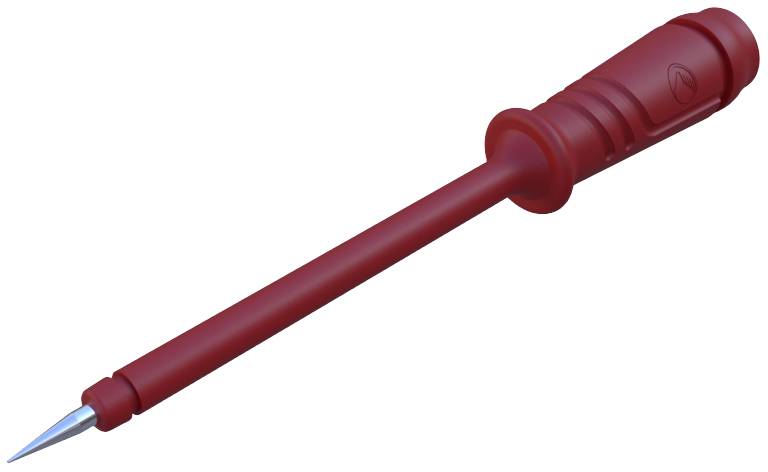

Probe tip PRÜF - Red
- Elastic insulation sleeve
- Rigid stainless steel tip
Technical specifications
- Product type
Test tip
- Connection
4 mm jack connector
- Nominal voltage
30 V AC
60 V DC
- Factory colour
Red
- Reading category
Ohne Messkategorie
- Jack diameter
4 mm
- Length
98 mm
- Tip diameter
2 mm
- Tip length
7.5 mm
- Tip material
Stainless steel, nickel-plated
- Max. resistance
50 mΩ
- Nominal current
1 A
- Nominal current - rounded value
1 A
- (Ø)
12 mm
- Shaft length
61 mm
- Plug features
Insulated
- Temperature range
-25 °C - +80 °C
Documents & Downloads
Datasheet
Datasheet 138541 Hirschmann Test & Measurement PRUEF 2 rt Test tip 973368101 4 mm jack connector Ohne Messkategorie Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 138541 Hirschmann Test & Measurement PRUEF 2 rt Test tip 973368101 4 mm jack connector Ohne Messkategorie Red 1 pc(s)
Description
Probe tip with elastic, shatterproof insulation shroud and slim stainless steel tip for penetrating insulated or oxidised layers.
