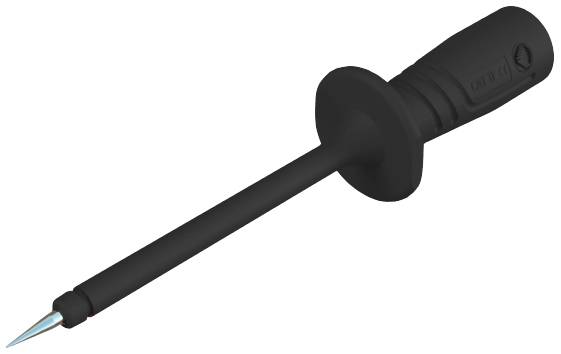

Hirschmann Test & Measurement PRUEF 2600 C2 sw Safety test probe 972327100 4 mm jack connector CAT II 1000 V Black 1 pc(
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Highlights & Details
safety test probe, 4 mm, 1000 V CAT II
- safety test probe Ø 4 mm, 1000 V / CAT II, unsprung stainless steel tip
Technical specifications
- Product type
Safety test probe
- Connection
4 mm jack connector
- Nominal voltage
1000 V
- Factory colour
Black
- Reading category
CAT II 1000 V
- Jack diameter
4 mm
- Length
98 mm
- Tip diameter
2 mm
- Tip length
63 mm
- Tip material
Stainless steel
- Max. resistance
50 mΩ
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Max. length
98 mm
- Width
19 mm
- Height
21 mm
- Shaft length
35 mm
- Temperature range
-25 °C to +80 °C °C
- Diameter/connectortype
4 mm safety system
- Reading category
CAT II
Documents & Downloads
Datasheet
Datasheet 679250 Hirschmann Test & Measurement PRUEF 2600 C2 sw Safety test probe 972327100 4 mm jack connector CAT II 1000 V Black 1 pc(
User & Safety Instructions
User & Safety Instructions 679250 Hirschmann Test & Measurement PRUEF 2600 C2 sw Safety test probe 972327100 4 mm jack connector CAT II 1000 V Black 1 pc(
Description
Test probe shatter - proof insulating sleeve and slender stainless steel tip. Tip for penetration of insulation and oxide layers. 4 mm diameter brass socket connection. Connection with safety measuring leads.
component part: protector and IC - tap SS 260
component part: protector and IC - tap SS 260
Features
- Slender, unsprung stainless steel tip. Unsprung socket Ø 4 mm.
Scope of delivery
- 1 x safety test probe
