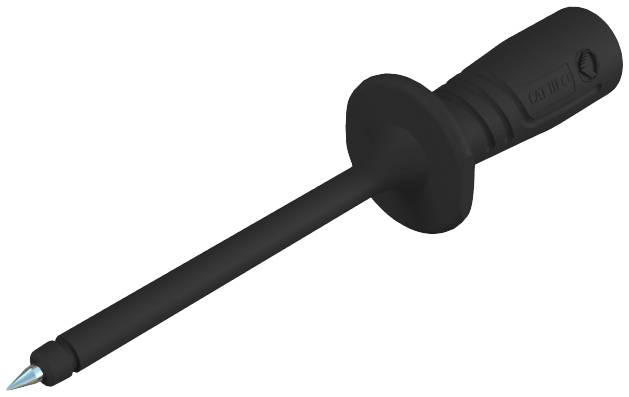

Hirschmann Test & Measurement PRUEF 2600 sw Safety test probe 972317100 4 mm jack connector CAT III 1000 V Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Probe tip PRÜF 2600
- CAT III 1000 V
- Nominal current 1 A
- Socket Ø 4 mm;Black
Technical specifications
- Product type
Safety test probe
- Connection
4 mm jack connector
- Nominal voltage
1000 V
- Factory colour
Black
- Reading category
CAT III 1000 V
- Jack diameter
4 mm
- Length
94 mm
- Tip diameter
2 mm
- Tip length
4 mm
- Tip material
Stainless steel, nickel-plated
- Max. resistance
50 mΩ
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Max. length
98 mm
- Width
21 mm
- Height
19 mm
- Shaft length
57 mm
- Temperature range
-25 to +80 °C
- Nominal voltage (details)
1000 V/AC/DC
Documents & Downloads
Datasheet
Datasheet 109417 Hirschmann Test & Measurement PRUEF 2600 sw Safety test probe 972317100 4 mm jack connector CAT III 1000 V Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 109417 Hirschmann Test & Measurement PRUEF 2600 sw Safety test probe 972317100 4 mm jack connector CAT III 1000 V Black 1 pc(s)
Description
With robust, elastic insulating sleeve and rigid stainless steel tip.
Features
- Safety test socket for use with laboratory safety test leads.
