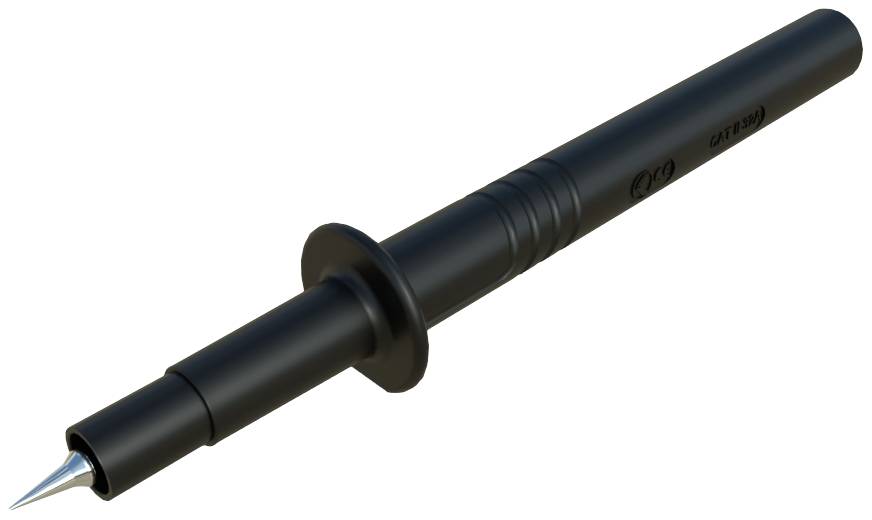

Hirschmann Test & Measurement PRUEF 2700 sw Safety test probe 972319100 4 mm jack connector CAT II 1000 V Black 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Highlights & Details
safety test probe, 4 mm, 1000 V CAT II
- safety test probe Ø 4 mm, 1000 V / CAT II, 32 A, for measuring and insertion in sockets
Technical specifications
- Product type
Safety test probe
- Connection
4 mm jack connector
- Nominal voltage
1000 V
- Factory colour
Black
- Reading category
CAT II 1000 V
- Jack diameter
4 mm
- Length
130 mm
- Tip diameter
4 mm
- Tip length
19 mm
- Tip material
Brass, nickel plated
- Max. resistance
2 mΩ
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Width
20 mm
- Height
19 mm
- Shaft length
90 mm
- Temperature range
-25 °C to +80 °C °C
- Diameter/connectortype
4 mm safety system
- Reading category
CAT II
Documents & Downloads
Datasheet
Datasheet 679248 Hirschmann Test & Measurement PRUEF 2700 sw Safety test probe 972319100 4 mm jack connector CAT II 1000 V Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 679248 Hirschmann Test & Measurement PRUEF 2700 sw Safety test probe 972319100 4 mm jack connector CAT II 1000 V Black 1 pc(s)
Conformity certificate
Conformity certificate 679248 Hirschmann Test & Measurement PRUEF 2700 sw Safety test probe 972319100 4 mm jack connector CAT II 1000 V Black 1 pc(s)
Description
Safety test probe with dual function. Tip for penetrating insulation and oxide layers and 4 mm diameter pin for insertion in sockets. 4 mm diameter brass socket connection. Connects with safety measuring leads.
Features
- Dual function safety test probe for penetration of insulation and oxide layers and insertion into sockets. CE certified.
Scope of delivery
- 1 x safety test probe
