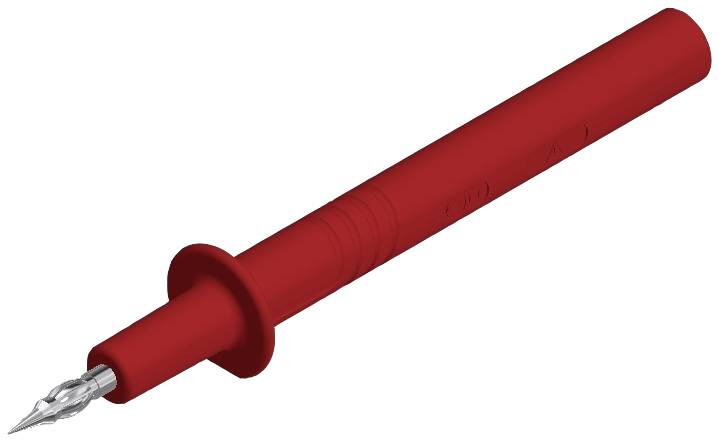

Hirschmann Test & Measurement PRUEF 3 rt Test probe 973369101 4 mm jack connector Ohne Messkategorie Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Highlights & Details
- Ohne Messkategorie
- Nominal current 32 A
- Socket Ø 4 mm;Red
Technical specifications
- IEC 61010
- Product type
Test probe
- Connection
4 mm jack connector
- Nominal voltage
30 V AC
60 V DC
- Factory colour
Red
- Reading category
Ohne Messkategorie
- Jack diameter
4 mm
- Tip diameter
4 mm
- Tip length
19 mm
- Tip material
Brass, nickel plated
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Max. length
130 mm
- Width
19 mm
- Height
20 mm
- Temperature range
-25 to +70 °C
Documents & Downloads
Datasheet
Datasheet 1762642 Hirschmann Test & Measurement PRUEF 3 rt Test probe 973369101 4 mm jack connector Ohne Messkategorie Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1762642 Hirschmann Test & Measurement PRUEF 3 rt Test probe 973369101 4 mm jack connector Ohne Messkategorie Red 1 pc(s)
Description
Probe tip with double function. Tip for penetrating insulated or oxidised layers and 4 mm diameter pin to be plugged into the sockets. 4 mm diameter brass socket connector. Can be plugged with 4
Mm test leads.
