SKYRC NC2200 Scale model battery charger 2.2 A NiMH Individual slot monitoring
EAN:
Part number:
Item no:
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Charging current 0.2A - 2.2A
- Discharge current: 0.1A - 1.0A
- Cell type AA/AAA NiMH
- Supported capacity 500-3200mAh
- Capacity protection 3200mAh
- Product type
Scale model battery charger
- Matching rechargeable battery
NiMH
- Suitable for (no. of NiCd/NiMH batteries) (max.)
4
- Charging current (max.)
2.2 A
- Discharge current
1 A
- Charging slots
4
- Dim
(L x W x H) 112 x 108 x 62 mm
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Weight
370 g
- Manufacturer part #
SK-100181
- Charger features
Individual slot monitoring
- Width
108 mm
- Height
62 mm
- Length
112 mm
- No. of cells
4
- Suitable for batteries
1 - 4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400258 SKYRC NC2200 Scale model battery charger 2.2 A NiMH Individual slot monitoring
Description

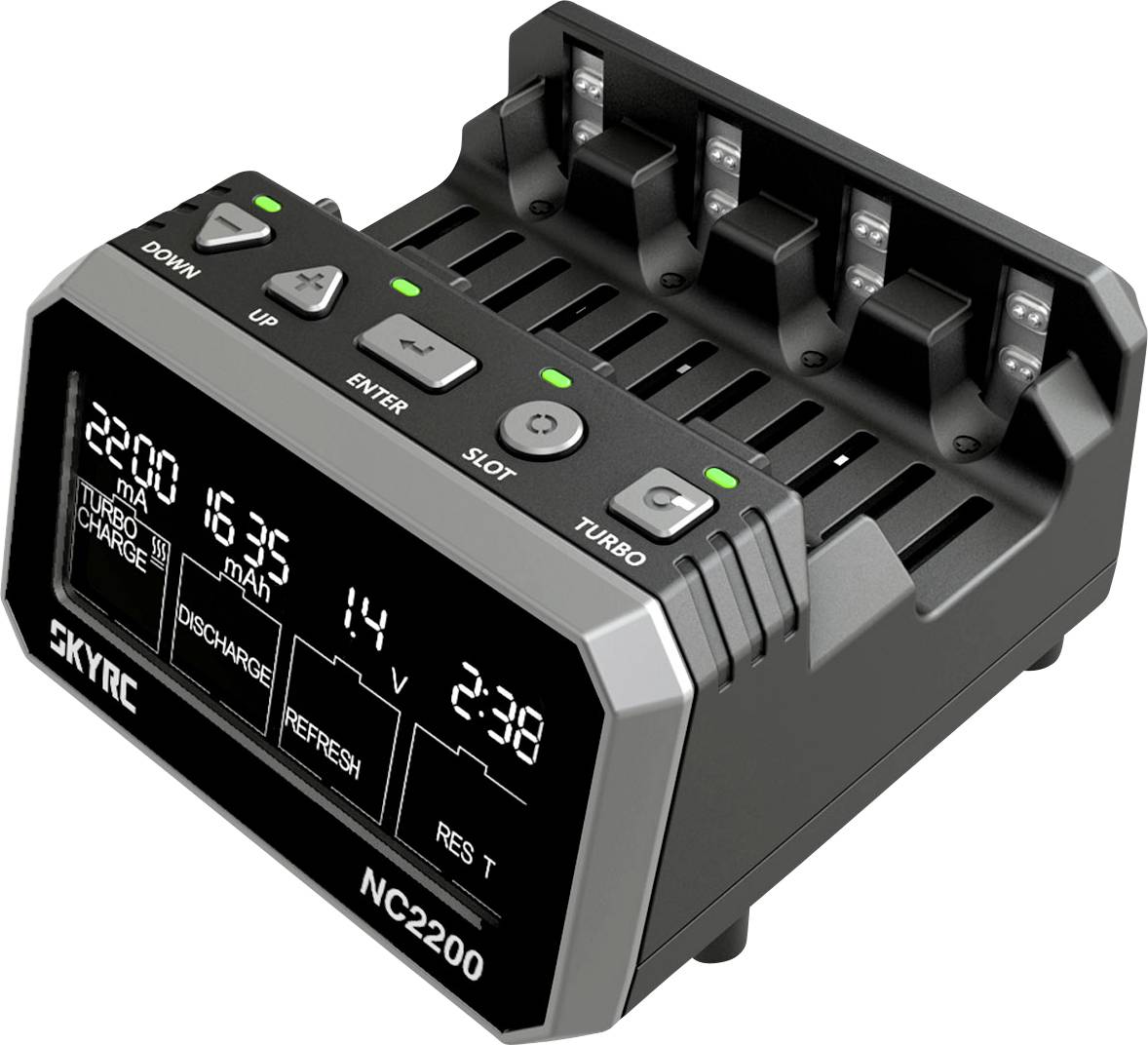

The NC2200 charger is a compact charger for up to 4 rechargeable battery batteries of the type NiMH/NiCd in the sizes AA or AAA. With four independent slots, the batteries can be charged differently depending on their capacity. And in order to increase the comfort even further, the VA-display shows the most important data like the charging current, the battery capacity as well as the internal resistance, the voltage and the remaining time in real-time updates. This is only possible thanks to the extremely strong Cortex-M3 processor from ARM fitted in this charger.
FlexiPulse is another innovation in the options that the device can offer to the user. During the runtime of a rechargeable battery it is possible that the internal resistance increases further with each use. This means that it uses more current and makes the battery even hotter when charging. The FlexiPulse developed by SKYRC prevents this problem, in which the charging current is reduced as soon as the NC2200 reaches a certain internal resistance value. This is not only economic, it is also ecological.
If this is not enough, the SkyCharger smartphone APP and Bluetooth dongle can be used to access all of the specified information, as well as a charging chart and to update the device's firmware.
This text is machine translated.
FlexiPulse is another innovation in the options that the device can offer to the user. During the runtime of a rechargeable battery it is possible that the internal resistance increases further with each use. This means that it uses more current and makes the battery even hotter when charging. The FlexiPulse developed by SKYRC prevents this problem, in which the charging current is reduced as soon as the NC2200 reaches a certain internal resistance value. This is not only economic, it is also ecological.
If this is not enough, the SkyCharger smartphone APP and Bluetooth dongle can be used to access all of the specified information, as well as a charging chart and to update the device's firmware.
This text is machine translated.
Features
- 4 independent charging slots each with 2000mA/2200mA (Turbo)
- Battery-rescue program
- Rich contrast VA Display
- Internal resistance measurement with FlexiPulse
- Robust technology in pocket size
- Advanced security features
- 5 charging modes: Turbo (quick charging), charging, discharging, refresher & analyzer, break-in
