Smart Vacuum set testo 0564 4558 Temperature, Pressure Clamp meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 923.53 / piece)
€ 923.53
plus VAT.
14-day return policy included
Highlights & Details
testo 558s - Smart vacuum set including data logging with clamp-on ammeter
- Intuitive operation - With the touch-screen operation and the large color display configuration, control and documentation are simplified considerably. The use of the manifold is thus intuitive and faster. In addition to the touchscreen, the gauge can also be operated using buttons to work with gloves.
- Ready for any refrigerant - For maximum safety, the manifold is also compatible with flammable refrigerants of the A3 and A2L classes. With a wide selection of 96+ refrigerants all conventional refrigerants are stored in the manifold. Frequently used refrigerants can be marked as favorites to find them quickly at any time.
- Precise measurement results in a clear display - Thanks to the high precision of 0.25 full scale and the new, clear measurement graphics the evaluation of the system becomes simple and reliable.
- Data Logging - The evaluation of the data is simplified considerably with new 30-minute trend diagrams. Also a 72 hour long-term measurement is possible via the testo Smart APP. This allows data to be tracked and analyzed over a longer period of time.
- Simple data management - The measured values can be exported and sent directly via the testo Smart APP as measurement protocol, so that the documentation can be completed directly on site in just a few clicks.
- Made for any application thanks to full connectivity - whether overheating and undercooling, leak test, Delta T, evacuation or filling - thanks to a variety of measurement programs and connectivity to the entire refrigeration portfolio, all applications can be controlled and documented via the manifold.
- Safe and robust - the protection class IP 54 guarantees high robustness and durability.
- Always up-to-date - thanks to free updates (OAT) the manifold can be updated regularly. For example, new refrigerants are added and connectivity to new products is possible.
Technical specifications
- Operating temperature -20 ... +50 °C
- Storage temperature -20 ... +60 °C
- Battery type Fixed built-in rechargeable battery (USB-C): LI battery 18650
- Changeable battery: 3 AA alkaline batteries
- Auto Power off after 10 min. If not connected via Bluetooth®
- Display capacitive touch-screen
- Bluetooth® technology/range: Bluetooth® 5.0 / 150 m.
- Data logging 72h data login
- Product type
Smart Vacuum set
- Reading range
-1, -50 - 60, 150 bar, °C
- Unit of measurement
Temperature
Pressure
- Resolution
0.01 bar
0.1 °C
- Features
Clamp meter
- Accuracy
0.25 %
0.5 °C
- Weight
1.3 kg
- Reading range (max.)
60 bar
150 °C
- Reading range (min.)
-1 bar
-50 °C
- Width
112.5 mm
- Height
71 mm
- Length
229 mm
IP54
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3499973 Smart Vacuum set testo 0564 4558 Temperature, Pressure Clamp meter
User & Safety Instructions
User & Safety Instructions 3499973 Smart Vacuum set testo 0564 4558 Temperature, Pressure Clamp meter
Description
Start immediately with your wireless measurements on refrigeration, air conditioning and heat pumps. The practical set with testo 558s digital technician's aid with Bluetooth connection to the wireless temperature and vacuum probes and the set of 4 filling tubes make it the ideal basis for everyday measurement tasks. The testo 558s makes intuitive operation possible thanks to its touchscreen and clear measurement graphics on large color display. In addition to the touchscreen, the gauge aid for working with gloves can also be operated using buttons. Thanks to A3 and A2L compatibility, high robustness with IP 54 and hybrid charging system of battery and batteries, the installation help is optimally suitable for each situation.
This text is machine translated.
This text is machine translated.
Features
- Intuitive APP feeling in your manifold with touch-screen and clear visualization of the measured values
- All in one device: All measuring applications in one manifold and wireless connection to the entire refrigeration portfolio
- A3 and A2L compatibility for maximum security
- Trend curves of measured values over 30 minutes
- Full flexibility thanks to unique operability of touch screen, proven key control and testo Smart APP
- Always ready to use with hybrid charging system of batteries and rechargeable battery (USB-C) and robust thanks to protection class IP 54
- testo 115i
- Clamp thermometer with smartphone operation, for measurement on pipes of 6 to max. 35 mm diameter, including batteries and calibration protocol
- Easy temperature measurement of refrigeration, air conditioning and heating systems - thanks to wireless connection to your smartphone or tablet
- Quick detection of temperature changes through graphical progress display
- testo 552i
- APP-controlled wireless vacuum probe, including batteries and calibration protocol
- The testo 552i vacuum probe with Bluetooth lets you measure vacuum wirelessly, quickly, easily and precisely via one service connection – with no loss of refrigerant. The testo Smart APP supports thereby with numerous intelligent functions – you can detect vacuum immediately at a glance through the graphic display in the APP or on the display of the installation help. Thanks to a robust, handy casing and proven measurement technology, the vacuum probe is compact and reliable for measuring vacuum in cold and air conditioning systems as well as heat pumps.
- testo 770-3 - clip-on ammeter with Bluetooth ®
- Contact-free measurements at lying wires are obtained simply and safely by hand with the testo 770-3 clamp meter. Its innovative grip mechanism enables easy working. As the most powerful model in the clamp-on ammeter family, it offers many additional functions to meet your daily challenges, such as connecting to the testo Smart APP as well as to other testo measuring devices. The increased resolution of the clamp-on ammeter delivers high-precision results even in the lower current range.
- Long-term measurement with integrated 72-hour data logging

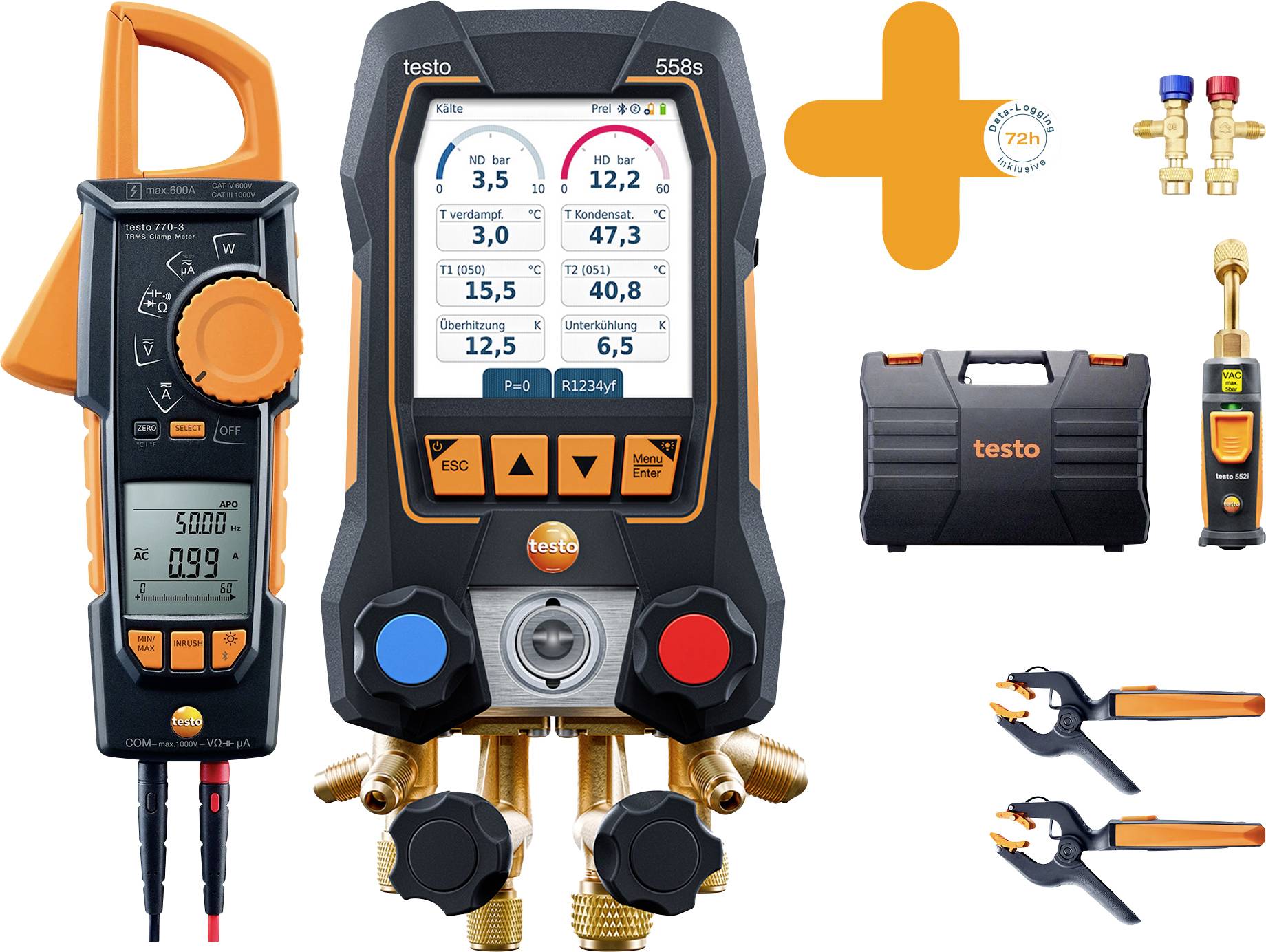

Scope of delivery
- 1 x testo 558s digital gauge
- 2 x Smart probe testo 115i
- 1 x Smart probe testo 552i
- 1 x transport case
- 1 x TRMS clamp-on ammeter testo 770-3
- 1 x filling/ release valve (0554 3112)
- 1 x USB-C cable
- 3 x AA alkaline batteries
- 1 x calibration protocol for testo 558s
System requirements
- Andorid, IOS
