Smart Vacuum set testo 558s Clamp meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
testo 558s - Smart vacuum set with current clamp
- Intuitive APP feeling in your manifold with touch-screen and clear visualization of the measured values
- All in one device: All measuring applications in one manifold and wireless connection to the entire refrigeration portfolio
- A3 and A2L compatibility for maximum security
- With 6 bits. Wireless vacuum probe , clamp thermometer and clamp-on ammeter
- As well as filling hose set and vacuum hose
Technical specifications
- Operating temperature -20 ... +50 °
- Storage temperature -20 ... +60 °
- Battery type Fixed built-in battery (USB-C) LI battery 18650
- Changeable battery: 3 alkaline batteries A
- Battery life with illumination and Bluetooth® ≤ 70 h.
- Auto Power off after 10 min. If not connected via Bluetooth®
- Display: Capacitive touch-screen
- Bluetooth® technology/range: Bluetooth® 5.0 / 150 m.
- Data Logging Available as an optional upgrade via In-APP purchase (72h data logging

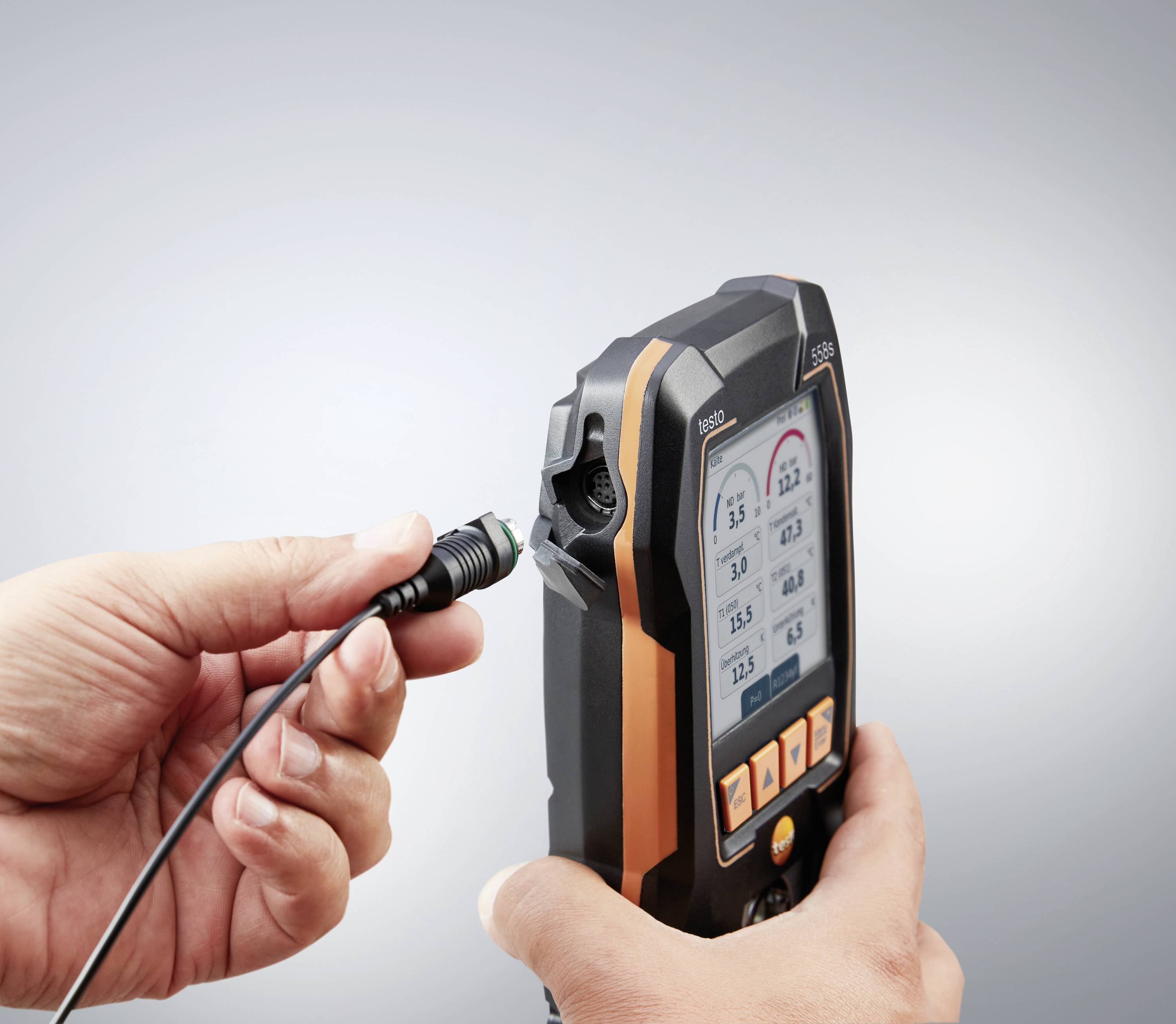

- Sensor connections: Pressure 3 x 7/16" – UNF + 1 x 5/8" – UNF; temperature 2 x pluggable (NTC)
- Product type
Smart Vacuum set
- Reading range
-1, -50 - 60, 150 bar, °C
- Resolution
0.01 bar
0.1 °C
- Features
Clamp meter
- Accuracy
0.25 %
0.5 °C
- Weight
1.3 kg
- Reading range (max.)
60 bar
150 °C
- Reading range (min.)
-1 bar
-50 °C
- Width
112.5 mm
- Height
71 mm
- Length
229 mm
IP54
Documents & Downloads
Datasheet
Datasheet 3389792 Smart Vacuum set testo 558s Clamp meter
User & Safety Instructions
User & Safety Instructions 3389792 Smart Vacuum set testo 558s Clamp meter
Description

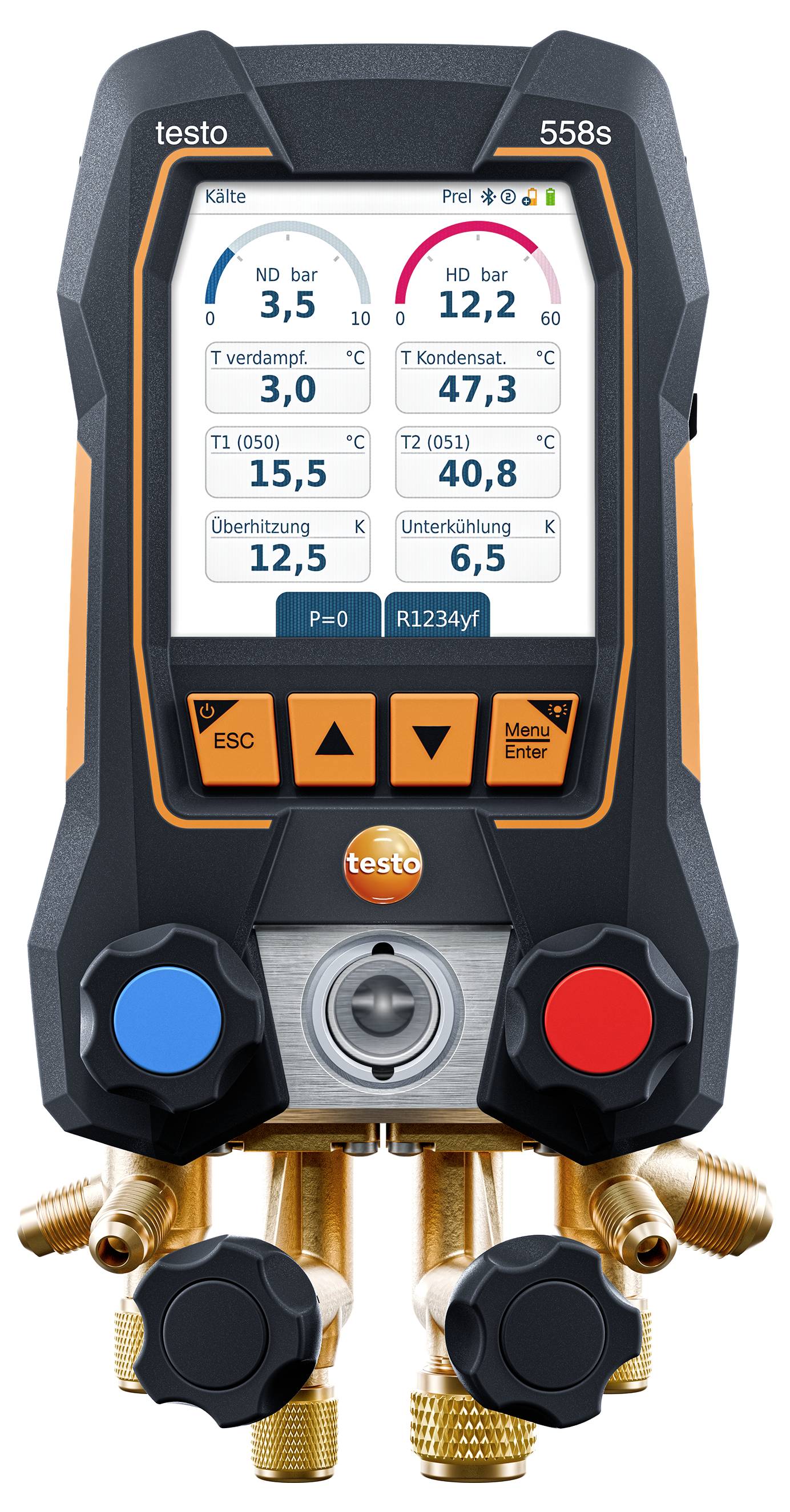

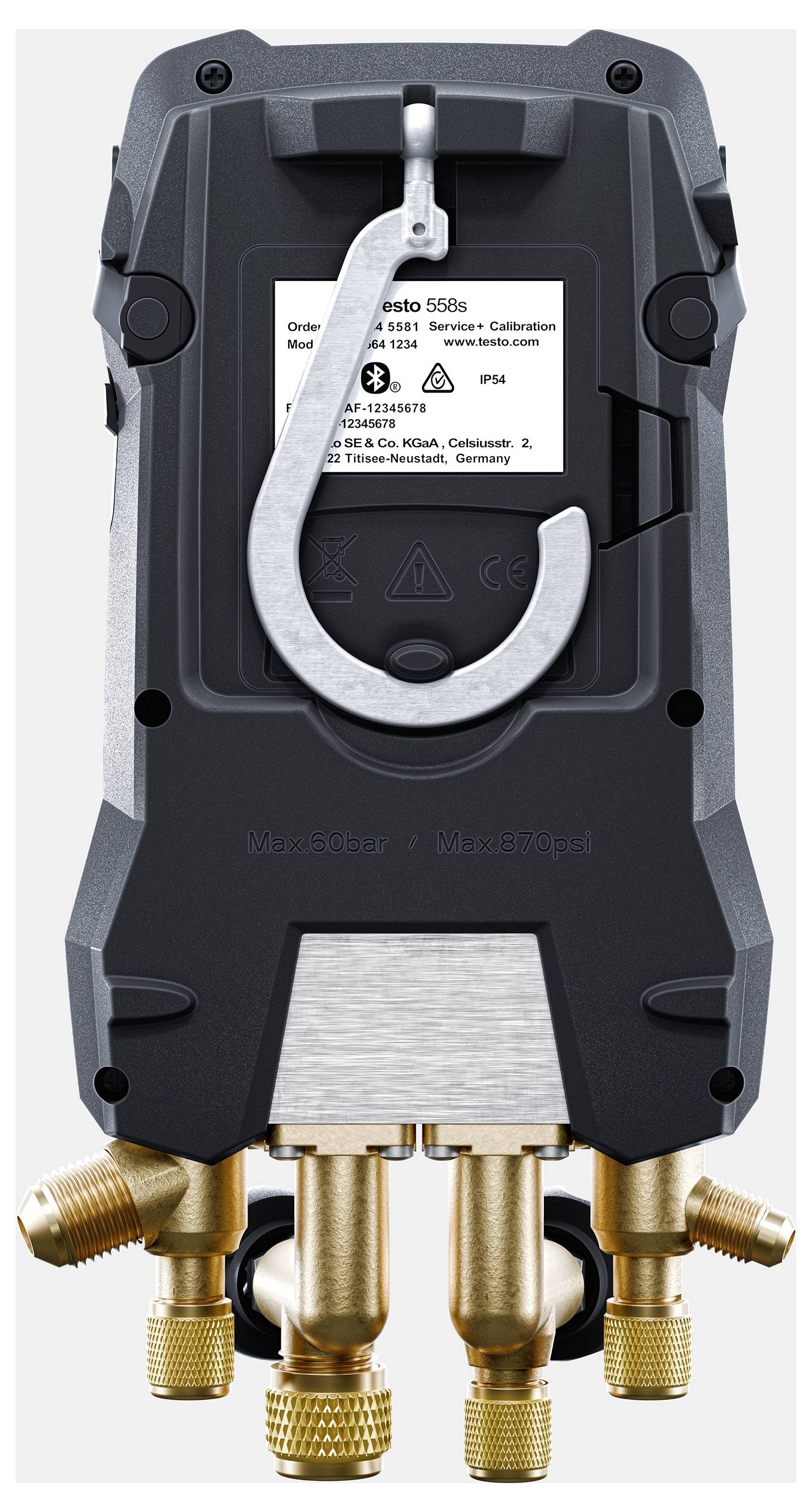

Smart digital manifold with 4-way valve block and intuitive touch screen including wireless temperature sensor, vacuum probe and testo 770-3 clamp meter.

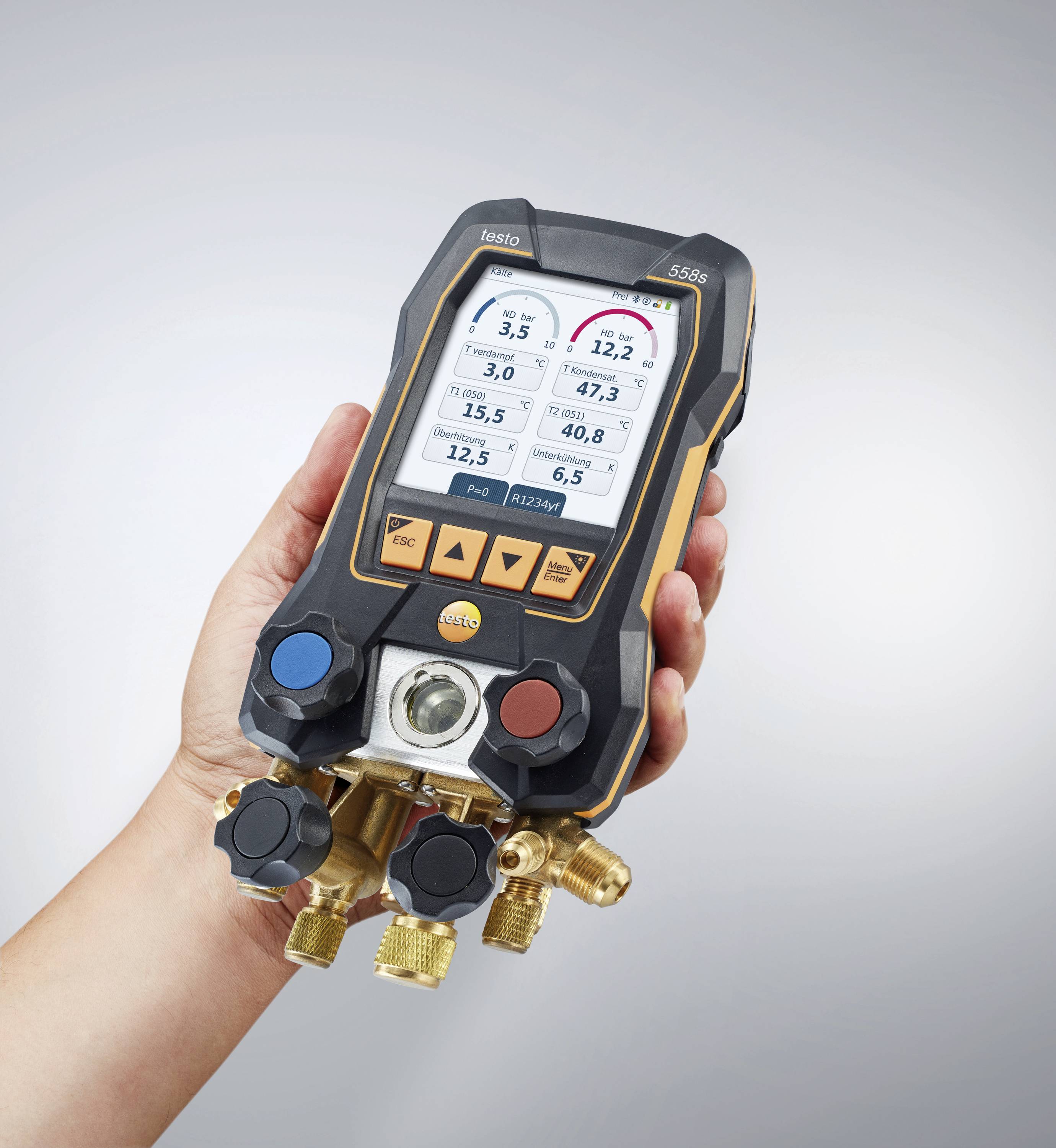

Using the testo 558s digital gauge makes working as intuitive as on a smartphone as possible. With the touch-screen use the configuration, control and documentation become even simpler. Alternatively, the device can be fully operated via the testo Smart APP or using buttons to work with gloves.

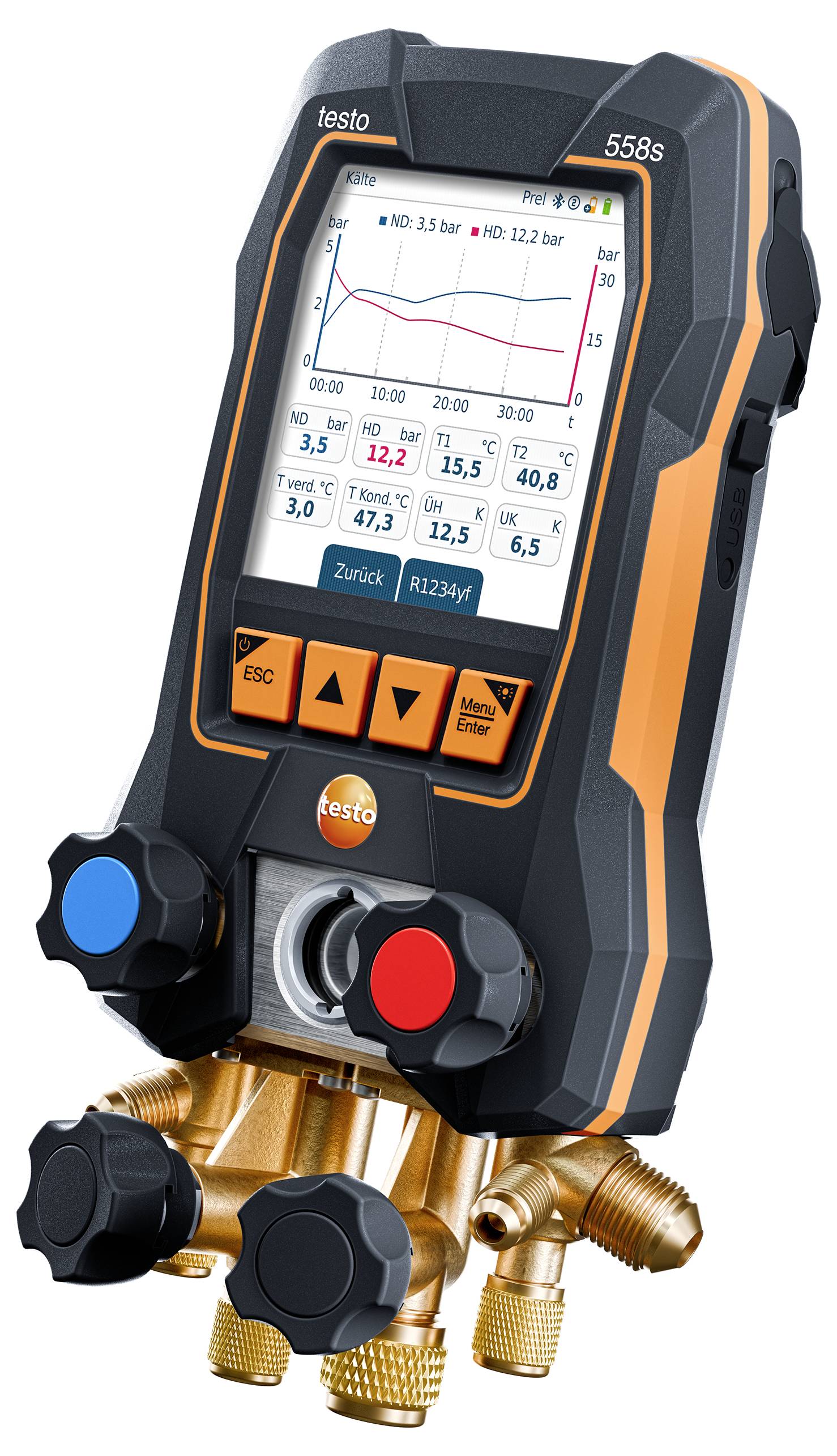

For even more convenience in everyday work, the measurement results can be displayed on large color display in clear graphics as well as 30-minute trend curves.
The high measurement accuracy of 0.25 % full scale also enables reliable evaluations. Through the numerous stored measurement menus and the connectivity over the entire testo cold portfolio, any applications can be controlled via the manifold.
For maximum safety, the manifold is compatible with combustible A3 and A2L refrigerants. With over 96 refrigerants stored in the manifold and regular OTA updates, the manifold help always remains up-to-date

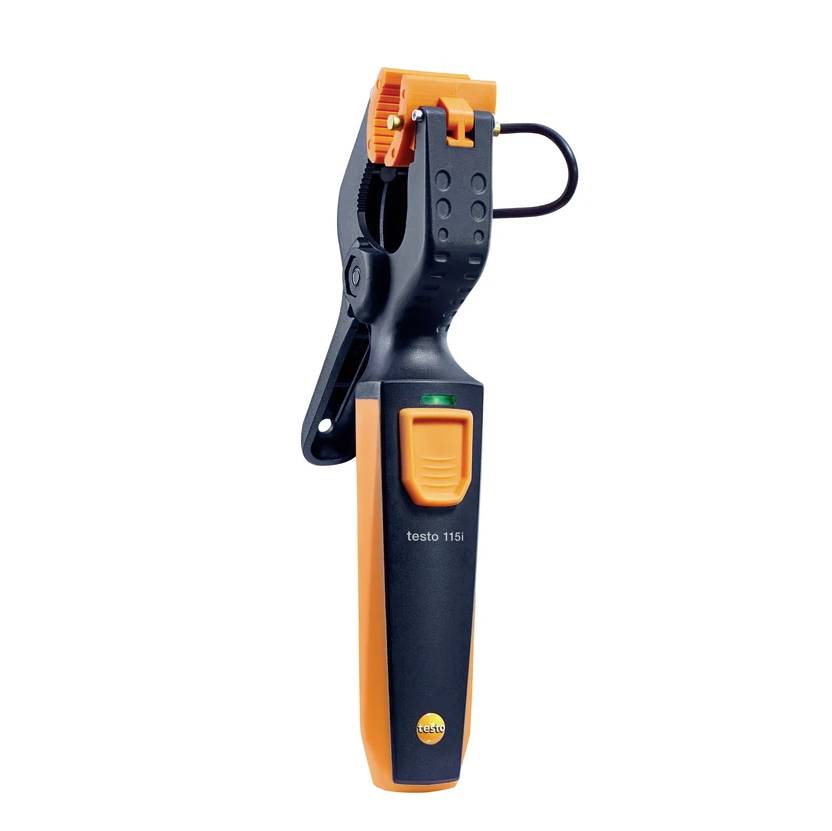

testo 115i
Clamp thermometer with smartphone operation, for measurement on pipes of 6 to max. 35 mm diameter, including batteries and calibration protocol
Easy temperature measurement of refrigeration, air conditioning and heating systems - thanks to wireless connection to your smartphone or tablet
Quick detection of temperature changes through graphical progress display

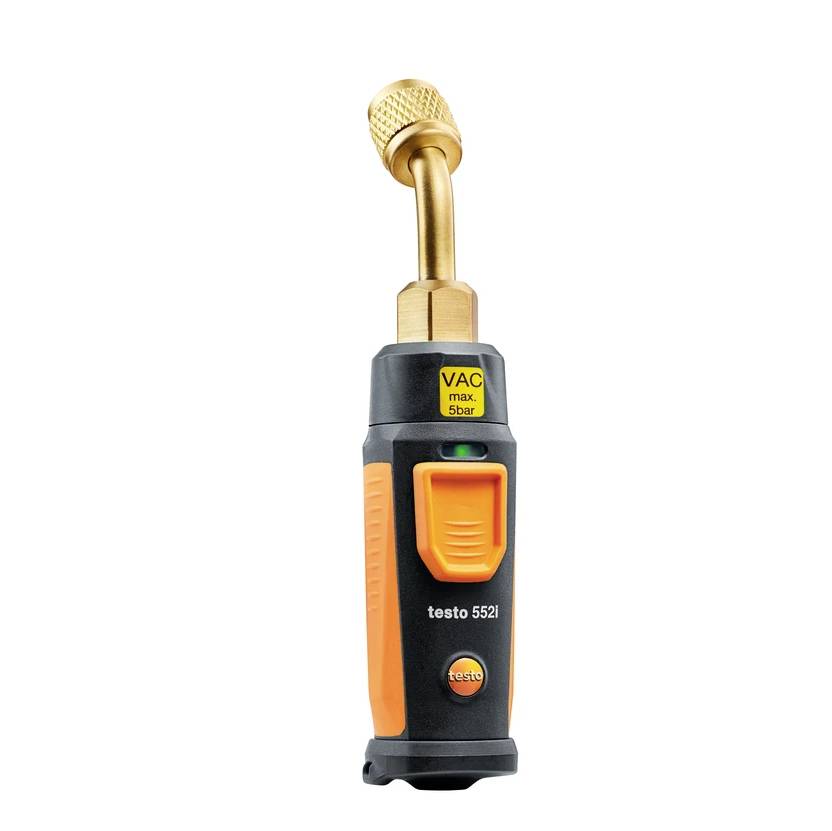

testo 552i
APP-controlled wireless vacuum probe, including batteries and calibration protocol
The testo 552i vacuum probe with Bluetooth lets you measure vacuum wirelessly, quickly, easily and precisely via one service connection – with no loss of refrigerant. The testo Smart APP supports thereby with numerous intelligent functions – you can detect vacuum immediately at a glance through the graphic display in the APP or on the display of the installation help. Thanks to a robust, handy casing and proven measurement technology, the vacuum probe is compact and reliable for measuring vacuum in cold and air conditioning systems as well as heat pumps.

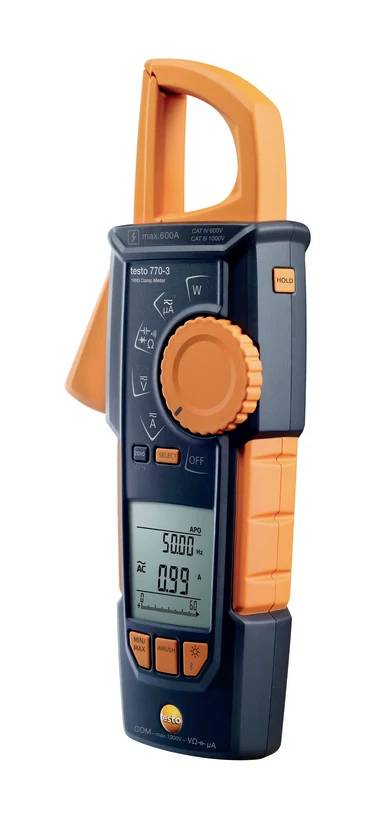

testo 770-3 - clip-on ammeter with Bluetooth ®
Contact-free measurements at lying wires are obtained simply and safely by hand with the testo 770-3 clamp meter. Its innovative grip mechanism enables easy working. As the most powerful model in the clamp-on ammeter family, it offers many additional functions to meet your daily challenges, such as connecting to the testo Smart APP as well as to other testo measuring devices. The increased resolution of the clamp-on ammeter delivers high-precision results even in the lower current range.
This text is machine translated.
Using the testo 558s digital gauge makes working as intuitive as on a smartphone as possible. With the touch-screen use the configuration, control and documentation become even simpler. Alternatively, the device can be fully operated via the testo Smart APP or using buttons to work with gloves.
For even more convenience in everyday work, the measurement results can be displayed on large color display in clear graphics as well as 30-minute trend curves.
The high measurement accuracy of 0.25 % full scale also enables reliable evaluations. Through the numerous stored measurement menus and the connectivity over the entire testo cold portfolio, any applications can be controlled via the manifold.
For maximum safety, the manifold is compatible with combustible A3 and A2L refrigerants. With over 96 refrigerants stored in the manifold and regular OTA updates, the manifold help always remains up-to-date
testo 115i
Clamp thermometer with smartphone operation, for measurement on pipes of 6 to max. 35 mm diameter, including batteries and calibration protocol
Easy temperature measurement of refrigeration, air conditioning and heating systems - thanks to wireless connection to your smartphone or tablet
Quick detection of temperature changes through graphical progress display
testo 552i
APP-controlled wireless vacuum probe, including batteries and calibration protocol
The testo 552i vacuum probe with Bluetooth lets you measure vacuum wirelessly, quickly, easily and precisely via one service connection – with no loss of refrigerant. The testo Smart APP supports thereby with numerous intelligent functions – you can detect vacuum immediately at a glance through the graphic display in the APP or on the display of the installation help. Thanks to a robust, handy casing and proven measurement technology, the vacuum probe is compact and reliable for measuring vacuum in cold and air conditioning systems as well as heat pumps.
testo 770-3 - clip-on ammeter with Bluetooth ®
Contact-free measurements at lying wires are obtained simply and safely by hand with the testo 770-3 clamp meter. Its innovative grip mechanism enables easy working. As the most powerful model in the clamp-on ammeter family, it offers many additional functions to meet your daily challenges, such as connecting to the testo Smart APP as well as to other testo measuring devices. The increased resolution of the clamp-on ammeter delivers high-precision results even in the lower current range.
This text is machine translated.
Features
- Intuitive APP feeling in your manifold with touch-screen and clear visualization of the measured values
- Full flexibility thanks to unique operability of touch screen, proven key control and testo Smart APP
- Trend curves of measured values over 30 minutes
- All in one device: All applications in a manifold thanks to wireless connection to the testo Smart probes, current clamp, vacuum pump and coolant balance
- A3 and A2L compatible for maximum safety even in the case of combustible refrigerants

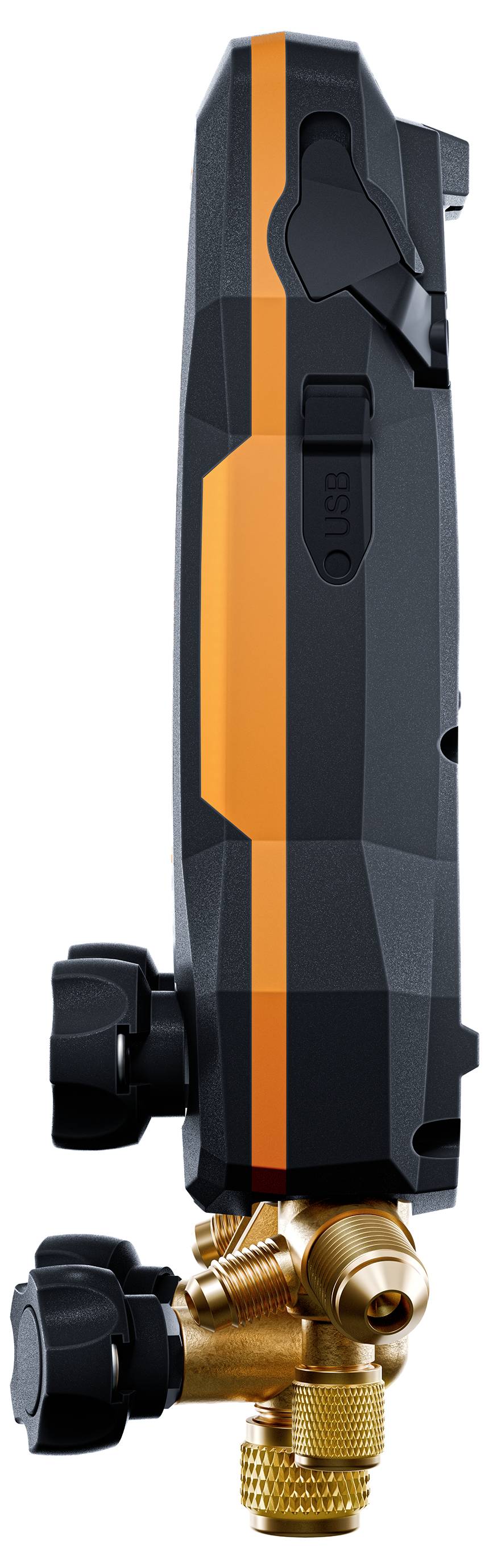

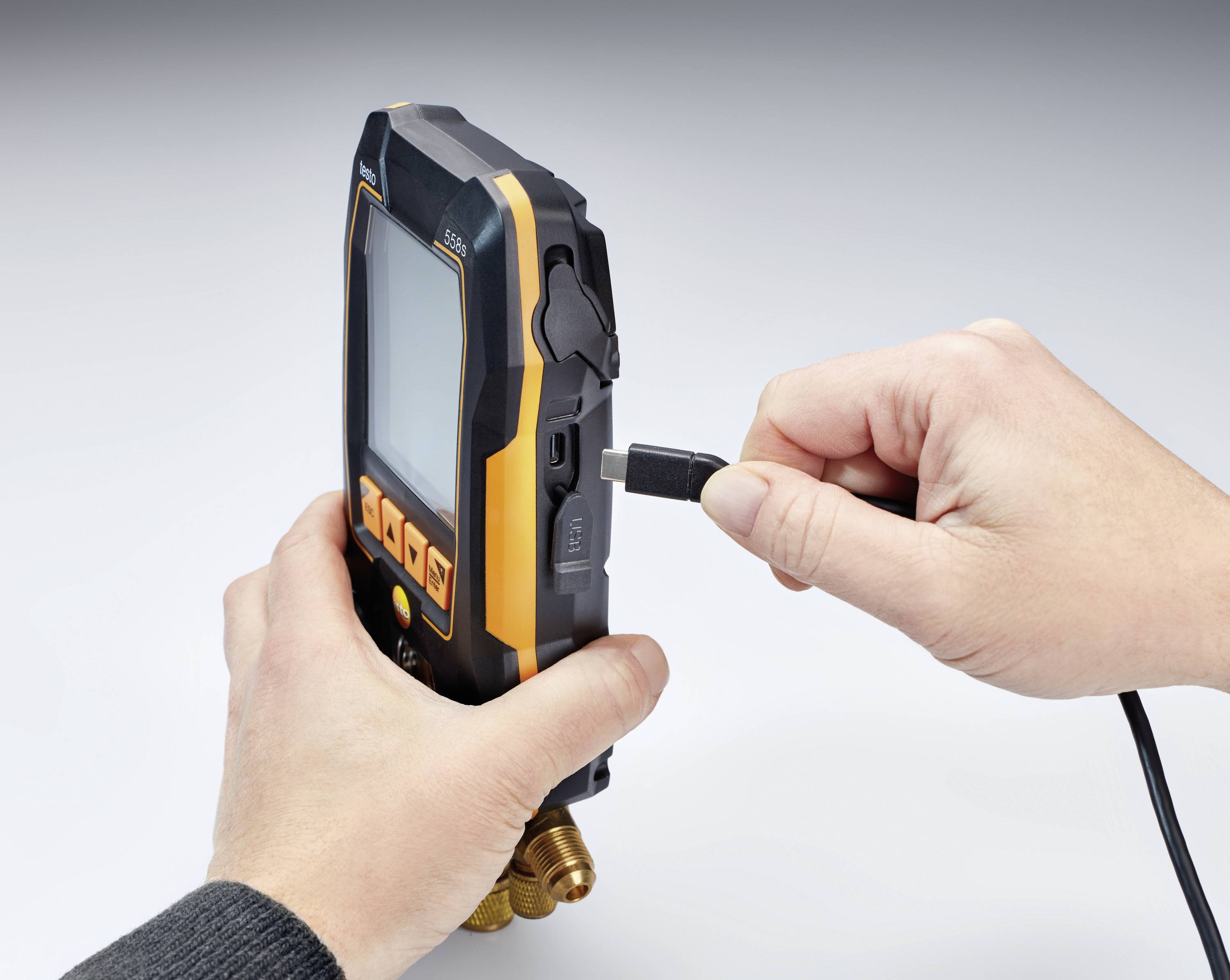

- Always ready to use with hybrid charging system of batteries and rechargeable batteries (USB-C)

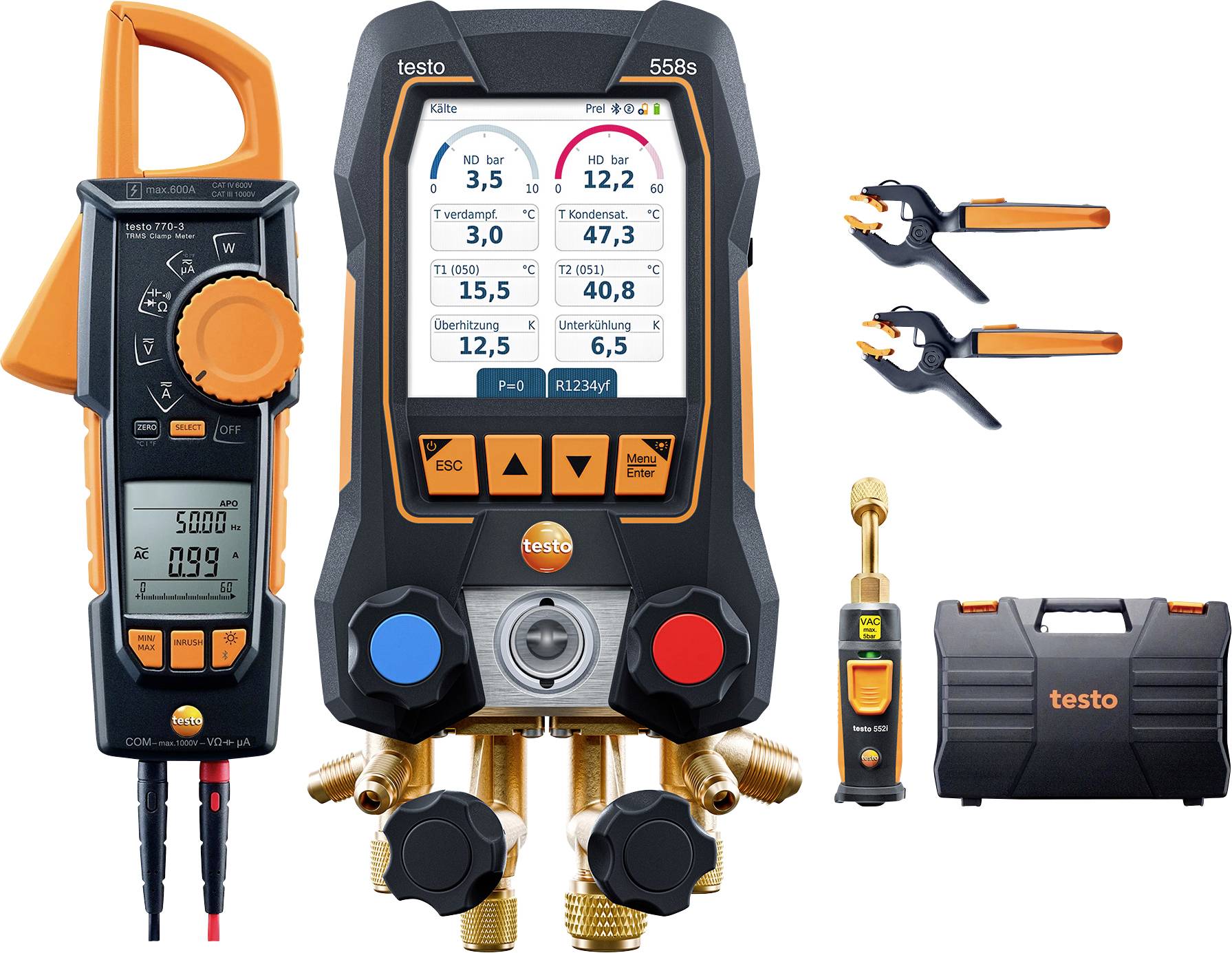

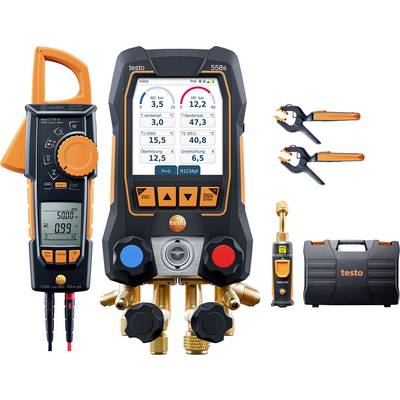

Scope of delivery
- 1 x testo 558s digital gauge
- 2 x Smart probe testo 115i
- 1 x Smart probe testo 552i
- 1 x transport case
- 1 x TRMS clamp-on ammeter testo 770-3.
Hints
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
System requirements
- Andorid, IOS
