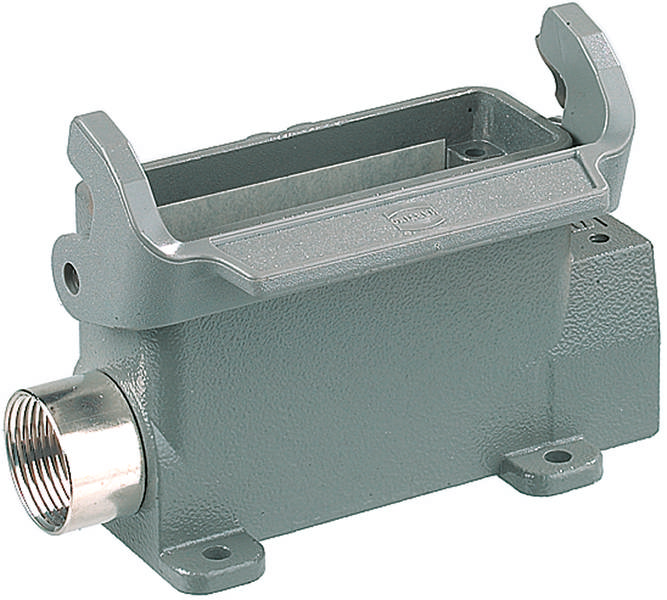

Socket enclosure 09 20 016 0221 09200160221 HARTING 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket enclosure
Series
Han® A
Thread size
PG16
Case material
Aluminium, die cast
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 215 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Standard casing for industrial applications
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529: IP65
- Housing description: With plastic cap
- Design size 16 A
- Approvals DNV GL
- Casing type: Base casing
- Design: Side cable input
- Cable input 1x PG 16
- Housing series: HAN A®
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Packaging type
Piece
- Type
09 20 016 0221
- Product type
Socket enclosure
- Series
Han® A
- Manufacturer part #
09200160221
- Features
Longitudinal brace
- Thread size
PG16
- Type
Lateral cable input
- Case material
Aluminium, die cast
- Series
Han A®
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
TRUE
Grey
Single locking lever
1
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
FALSE
Socket case
IP65
Sideways
Base unit
PG
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3006306 Socket enclosure 09 20 016 0221 09200160221 HARTING 1 pc(s) Piece
Datasheet 3006306 Socket enclosure 09 20 016 0221 09200160221 HARTING 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3006306 Socket enclosure 09 20 016 0221 09200160221 HARTING 1 pc(s) Piece
Description
Housing base, with plastic cap, size: 16 A, low profile, longitudinal rail, Polycarbonate (PC), stainless steel, lateral cable input, 1x PG 16
