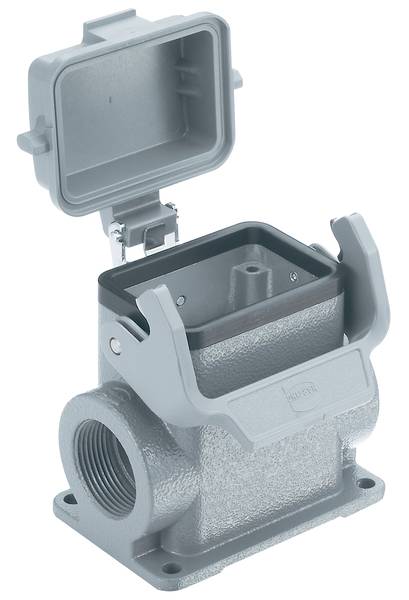

Socket enclosure 09 30 006 0297 09300060297 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Series
Han® B
Thread size
PG21
Case material
Aluminium, die cast
Type
09 30 006 0297
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 325.8 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529: IP65
- Housing description: With plastic cap
- Design size 6 B
- Approvals DNV GL
- Casing type: Base casing
- Design: Side cable input
- Cable input 2x PG 21
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Type
09 30 006 0297
- Product type
Socket enclosure
- Series
Han® B
- Manufacturer part #
09300060297
- Features
+ plastic cap
- Thread size
PG21
- Type
Lateral cable input
- Case material
Aluminium, die cast
- Brackets
2
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
TRUE
Grey
Single locking lever
2
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Socket case
IP65
Sideways
Base unit
PG
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3006388 Socket enclosure 09 30 006 0297 09300060297 HARTING 1 pc(s)
Datasheet 3006388 Socket enclosure 09 30 006 0297 09300060297 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006388 Socket enclosure 09 30 006 0297 09300060297 HARTING 1 pc(s)
Description
Housing base, with plastic cap, size: 6 B, low profile, longitudinal rail, Polycarbonate (PC), stainless steel, lateral cable input, 2x PG 21
