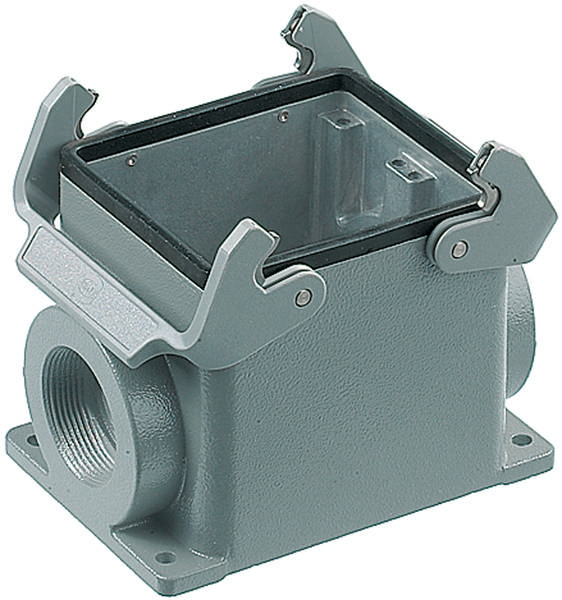

Socket enclosure 09 30 032 0271 09300320271 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Series
Han® B
Thread size
PG29
Case material
Aluminium, die cast
Type
09 30 032 0271
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace
- Temperature limit: -40 ... +125 °C
- Net weight: 820 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529: IP65
- Design size 32 B
- Approvals DNV GL
- Casing type: Base casing
- Design: Side cable input
- Cable input 2x PG 29
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: High design
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Type
09 30 032 0271
- Product type
Socket enclosure
- Series
Han® B
- Manufacturer part #
09300320271
- Features
high type
- Thread size
PG29
- Type
Lateral cable input
- Case material
Aluminium, die cast
- Brackets
2
- Series
Han® B
- Content
1 pc(s)
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Grey
Double locking levers
2
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Socket case
IP65
Sideways
Base unit
PG
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3006116 Socket enclosure 09 30 032 0271 09300320271 HARTING 1 pc(s)
Datasheet 3006116 Socket enclosure 09 30 032 0271 09300320271 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006116 Socket enclosure 09 30 032 0271 09300320271 HARTING 1 pc(s)
Description
Socket housing, size: 32 B, high profile, transverse bow, polycarbonate (PC), Stainless steel, side cable input, 2x PG 29
