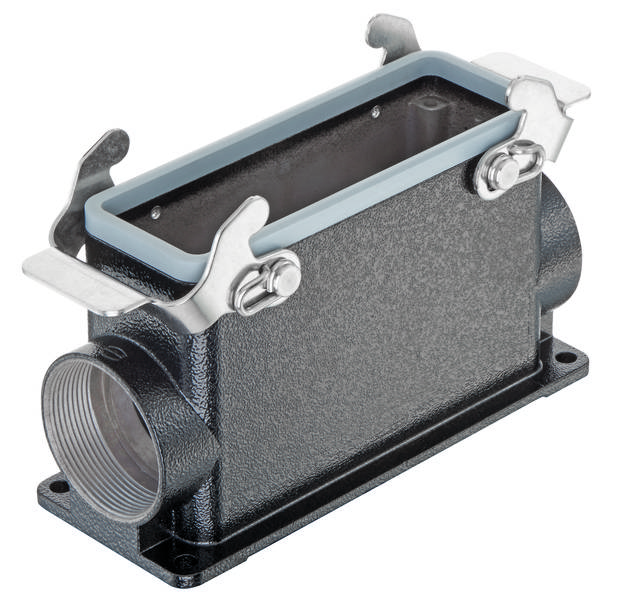

Socket enclosure 19 37 024 0273 19370240273 HARTING 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket enclosure
Thread size
M40
Case material
Aluminium, die cast
Type
19 37 024 0273
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace
- Temperature limit: -40 ... +125 °C
- Net weight: 43 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Housing for increased environmental influences
- Material locking: Stainless steel
- Protection class according to IEC 60529: IP65
- Design size 24 B
- Approvals DNV GL
- Casing type: Base casing
- Design: Side cable input
- Cable input 2x M40
- Housing series: HAN® M
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material seal: FPM
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: High design
- Protection class according to UL 50 / UL 50E:4;4X;12
- Packaging type
Piece
- Type
19 37 024 0273
- Product type
Socket enclosure
- Manufacturer part #
19370240273
- Features
Transverse brace
- Thread size
M40
- Type
Lateral cable input
- Case material
Aluminium, die cast
- Brackets
2
- Series
Han® M
- Content
1 pc(s)
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Black
Double locking levers
2
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Socket case
IP65
Sideways
Base unit
Metric
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3006071 Socket enclosure 19 37 024 0273 19370240273 HARTING 1 pc(s) Piece
Datasheet 3006071 Socket enclosure 19 37 024 0273 19370240273 HARTING 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3006071 Socket enclosure 19 37 024 0273 19370240273 HARTING 1 pc(s) Piece
Description
Socket housing, size: 24 B, high profile, transverse bow, stainless steel, lateral cable input, 2x M40, material housing: die-cast aluminum
