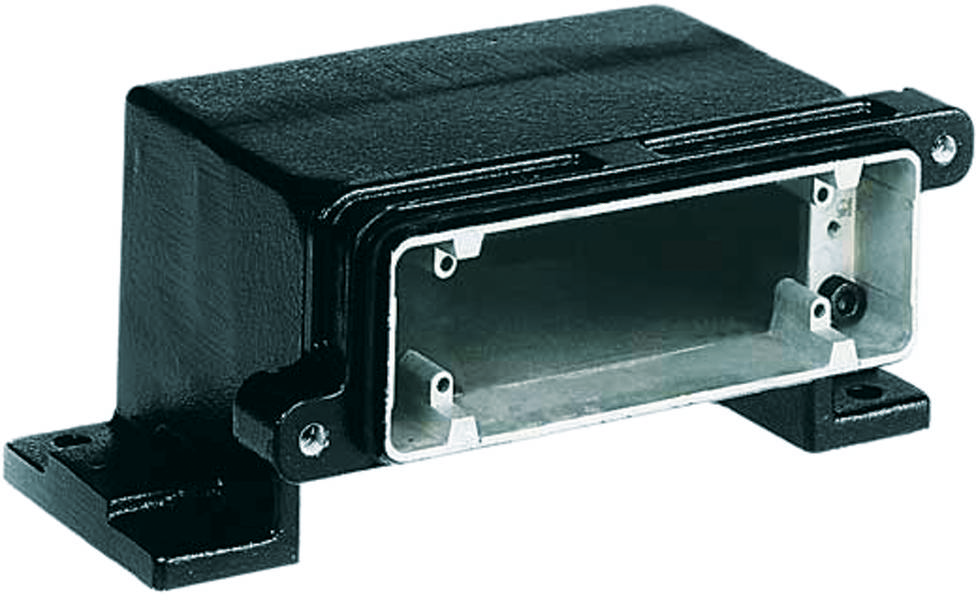

Socket enclosure 19 40 024 0925 19400240925 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
19 40 024 0925
Manufacturer part #
19400240925
Datasheet (PDF)
Technical specifications
- Type of locking: Screw lock
- Temperature limit: -40 ... +125 °C
- Net weight: 1,110 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Range of uses: Housing for harsh outdoor use
- Material locking: Stainless steel
- Protection class according to IEC 60529: IP65;IP68;IP69 / IPX9K according to ISO 20653
- Housing description: Horizontal design
- Design size 24 B
- Approvals DNV GL
- Casing type: Base casing
- Design: Straight cable input
- Cable input 2x M32
- Housing series: HAN® HPR
- Material housing: Aluminium die-cast; corrosion-resistant
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Protection class according to UL 50 / UL 50E:4;4X;12
- Tightening torque screw locking: 4 Nm
- Type
19 40 024 0925
- Product type
Socket enclosure
- Manufacturer part #
19400240925
- Features
+ screw lock
- Thread size
M32
- Type
Straight cable input
- Case material
Aluminium, die cast
- Series
Han® HPR
- Content
1 pc(s)
IP65
IP68
IP69
IPX9K
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Black
Screw
2
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Socket case
IP65
Above
None
Metric
Documents & Downloads
Datasheet
Datasheet 3006159 Socket enclosure 19 40 024 0925 19400240925 HARTING 1 pc(s)
Datasheet 3006159 Socket enclosure 19 40 024 0925 19400240925 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006159 Socket enclosure 19 40 024 0925 19400240925 HARTING 1 pc(s)
Description
Housing base, horizontal, size: 24 B, screw locking, stainless steel, straight cable input, 2x M32
