Socket enclosure 19 43 110 0230 19431100230 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M20
Case material
Polyamide
Type
19 43 110 0230
Manufacturer part #
19431100230
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace
- Temperature limit: -40 ... +125 °C
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61984; EN 45545-2 Fire protection in rail vehicles
- Net weight: 234 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA);glass fiber reinforced
- Protection class according to IEC 60529 IP66
- Housing description: With integrated cable gland
- Design size 10 B
- Casing type: Base casing
- Design: Side cable input
- Cable input 1x M20
- Clamping range: 6 ... 13 mm
- Housing series: Han-Eco® B.
- Material housing: Polyamide (PA);glass fiber reinforced
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Colour of seal RAL 9005 (jet black)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Lock color: RAL 9005 (jet black)
- Material flammability class to UL 94 (locking bar): V-0
- Number of relocks: ≥ 500
- Type
19 43 110 0230
- Product type
Socket enclosure
- Manufacturer part #
19431100230
- Thread size
M20
- Type
Lateral cable input
- Case material
Polyamide
- Content
1 pc(s)
- Terminal Ø (max.)
6 mm
- Clamp Ø
13 mm
IP66
TRUE
FALSE
Black
Double locking levers
1
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
TRUE
Socket case
IP66
Sideways
Base unit
Metric
Documents & Downloads
Datasheet
Datasheet 3006187 Socket enclosure 19 43 110 0230 19431100230 HARTING 1 pc(s)
Datasheet 3006187 Socket enclosure 19 43 110 0230 19431100230 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006187 Socket enclosure 19 43 110 0230 19431100230 HARTING 1 pc(s)
Description

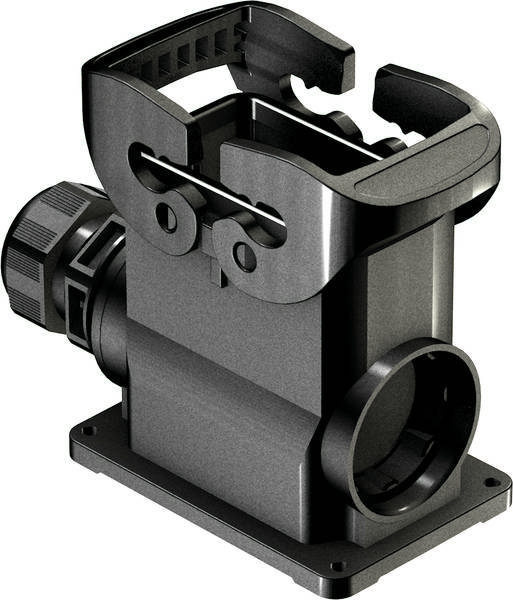

Socket housing, with integrated cable gland, size: 10 B, double handle, polyamide (PA), Glass-fiber reinforced, side cable input, 1x M20
