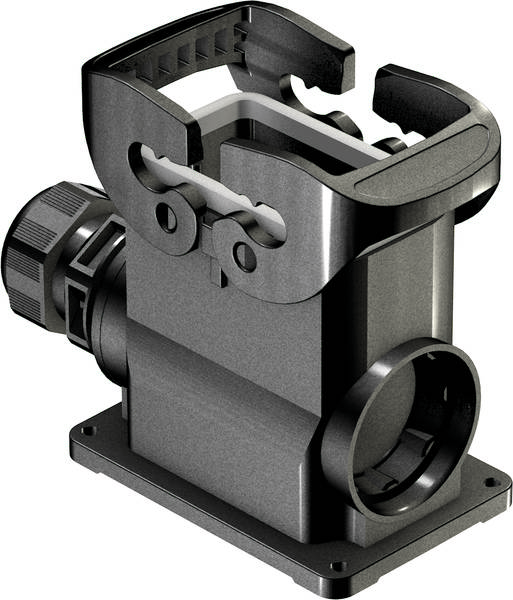

Socket enclosure 19 43 310 0231 19433100231 HARTING 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket enclosure
Series
Han® B
Thread size
M25
Case material
Polyamide
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace
- Temperature limit: -40 ... +125 °C
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61984; EN 45545-2 Fire protection in rail vehicles
- Net weight: 241.5 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA);glass fiber reinforced
- Protection class according to IEC 60529 IP66
- Housing description: With integrated cable gland
- Design size 10 B
- Casing type: Base casing
- Design: Side cable input
- Cable input: 1x M25
- Clamping range: 9 ... 17 mm
- Housing series: Han-Eco® B.
- Material housing: Polyamide (PA);glass fiber reinforced
- Colour of housing: RAL 9005 (jet black)
- Material seal: FPM
- Colour of seal RAL 7001 (silver gray)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Lock color: RAL 9005 (jet black)
- Material flammability class to UL 94 (locking bar): V-0
- Number of relocks: ≥ 500
- Packaging type
Piece
- Type
19 43 310 0231
- Product type
Socket enclosure
- Series
Han® B
- Manufacturer part #
19433100231
- Features
+ cable gland
- Thread size
M25
- Type
Lateral cable input
- Case material
Polyamide
- Mating cycles
≥ 500
- Series
Han-Eco® B
- Content
1 pc(s)
- Terminal Ø (max.)
9 mm
- Clamp Ø
17 mm
IP66
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Black
Double locking levers
1
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
TRUE
Socket case
IP66
Sideways
Base unit
Metric
Documents & Downloads
Datasheet
Datasheet 3006190 Socket enclosure 19 43 310 0231 19433100231 HARTING 1 pc(s) Piece
Datasheet 3006190 Socket enclosure 19 43 310 0231 19433100231 HARTING 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3006190 Socket enclosure 19 43 310 0231 19433100231 HARTING 1 pc(s) Piece
Description
Socket housing, with integrated cable gland, size: 10 B, double handle, polyamide (PA), Glass-fiber reinforced, side cable input, 1x M25
