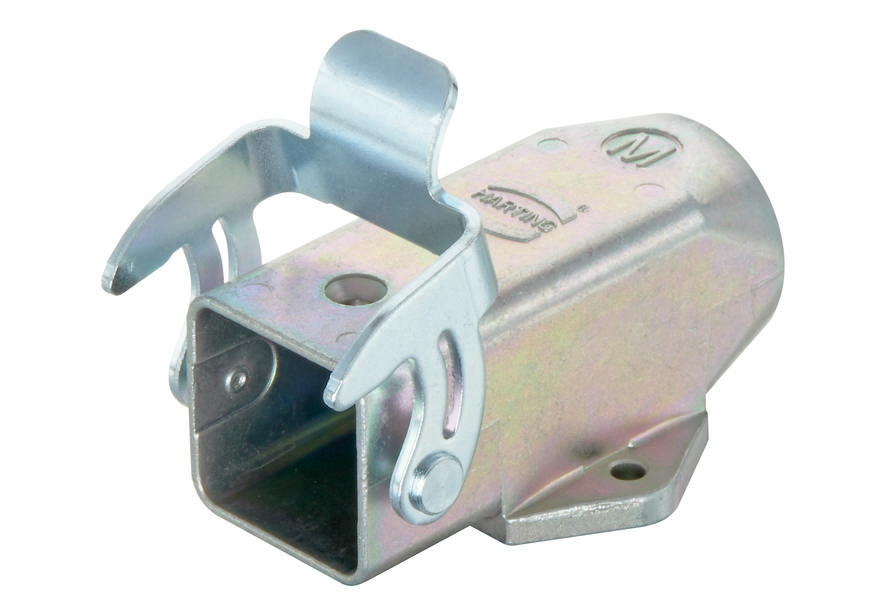

Socket enclosure 19 62 003 1252 19620031252 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M20
Case material
Diecast zinc
Type
19 62 003 1252
Manufacturer part #
19620031252
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 82.4 g
- Application area: Housing for increased EMC requirements
- Material locking: Steel
- Protection class according to IEC 60529: IP44;IP65 with sealing screw;IP67 with sealing screw
- Housing description: With closed bottom
- Design size 3 A
- Approvals DNV GL
- Casing type: Base casing
- Design: Straight cable input
- Cable input 1x M20
- Housing series: HAN® EMC
- Material housing: Zinc-Druckguss
- Surface housing: Uncoated
- Colour of housing: Unpainted
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Protection class according to UL 50 / UL 50E: 12
- Surface locking: Galvanised
- Type
19 62 003 1252
- Product type
Socket enclosure
- Manufacturer part #
19620031252
- Features
+ solid bottom
- Thread size
M20
- Type
Straight cable input
- Case material
Diecast zinc
- Series
Han® EMV
- Content
1 pc(s)
IP44
IP65
IP67
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Other
Single locking lever
1
FALSE
FALSE
Zinc
Uncoated
-40-125 °C
Other
FALSE
FALSE
Socket case
IP44
Above
Base unit
Metric
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3006169 Socket enclosure 19 62 003 1252 19620031252 HARTING 1 pc(s)
Datasheet 3006169 Socket enclosure 19 62 003 1252 19620031252 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006169 Socket enclosure 19 62 003 1252 19620031252 HARTING 1 pc(s)
Description
Housing base, with enclosed base, size: 3 A, longitudinal rail, steel, straight cable input, 1x M20, material housing: zinc die-cast
