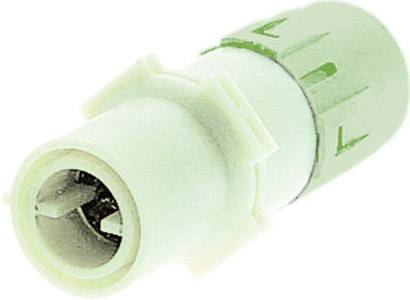

Socket insert 09110012771 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket inset
Number of pins
1
Type
09110012771
Manufacturer part #
09110012771
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 325 g
- Rated current: 650 A
- Rated voltage: 4000 V
- Conductor cross-section: 70 mm² - 120 mm²
- Gender: Socket
- Plug-in cycles: ≥ 500
- Tightening torque: 14 Nm - 95 mm², 16 Nm - 120 mm², 12 Nm - 70 mm²
- Rated surge voltage: 18 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.2 mΩ
- Stripping length: 23 mm - 25 mm
- Degree of contamination: 3
- wire outer diameter: ≤26.5 mm
- Packaging type
Piece
- Type
09110012771
- Product type
Socket inset
- Manufacturer part #
09110012771
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
1
- Connection
Axial screw terminal
- Total no. of pins
1
- Content
1 pc(s)
- Material
Polyamide
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Connector type
Socket
- UKCA
yes
