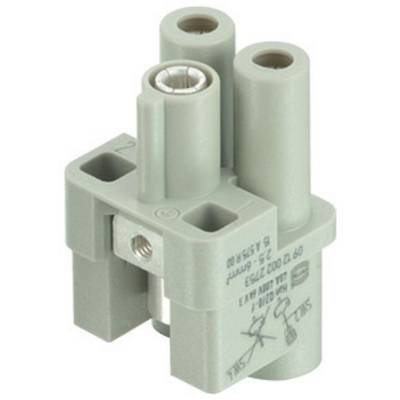

Socket insert 09120022753 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
2
Type
09120022753
Manufacturer part #
09120022753
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 18.4 g
- Size: 3 A
- Rated current: 40 A
- Number of contacts: 2
- Rated voltage: 400 V
- Cross-section of conductor: 2.5 ... 6 mm²
- Gender: Socket
- mating cycles: ≥ 500
- Tightening torque: 1.8 Nm
- Rated surge voltage: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 1 mΩ
- Pollution degree: 3
- Type
09120022753
- Product type
Socket inset
- Manufacturer part #
09120022753
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
2
- Connection
Axial screw terminal
- Total no. of pins
2 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
