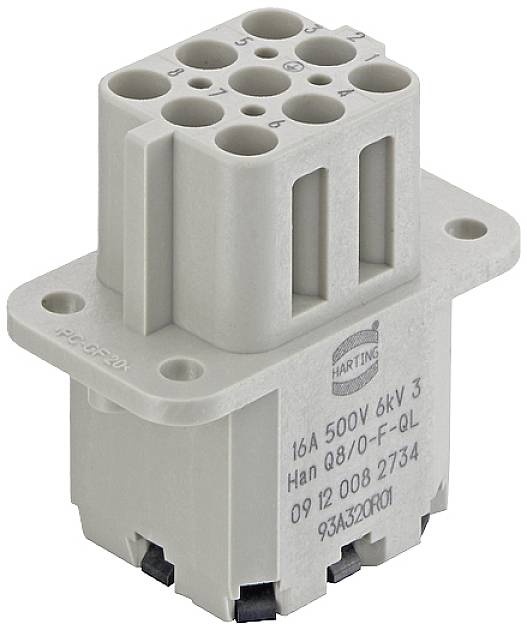

Socket insert 09120082734 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
8
Type
09120082734
Manufacturer part #
09120082734
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 38.65 / piece)
€ 38.65
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Net weight: 31.92 g
- Size: Han-Compact
- Rated current: 16 A
- Number of contacts: 8
- Rated voltage: 500 V
- Wire cross-section: 0.25 mm² - 1.5 mm²
- Gender: Socket
- Plug-in cycles: ≥ 500
- Rated surge voltage: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 3 mΩ
- Wire stripping length: 10 mm
- Pollution degree: 3
- Type
09120082734
- Product type
Socket inset
- Manufacturer part #
09120082734
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
8
- Connection
Han Quick-Lock®
- Total no. of pins
8 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1989311 Socket insert 09120082734 HARTING Content: 1 pc(s) Socket inset
User & Safety Instructions
User & Safety Instructions 1989311 Socket insert 09120082734 HARTING Content: 1 pc(s) Socket inset
