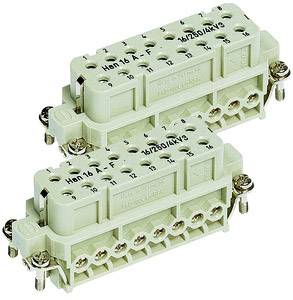

Socket insert 09200162815 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
16
Type
09200162815
Manufacturer part #
09200162815
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 68 g
- Size: 32 A
- Rated current: 16 A
- Number of contacts: 32
- Rated voltage: 250 V
- Wire cross-section: 0.75 mm² - 2.5 mm²
- Gender: Socket
- Plug-in cycles: ≥ 500
- Tightening torque: 0.5 Nm
- Rated surge voltage: 4 kV
- Contact surface: Silver plated
- Forward resistance: ≤ 1 mΩ
- Pollution degree: 3
- Type
09200162815
- Product type
Socket inset
- Manufacturer part #
09200162815
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
16
- Connection
Screws
- Total no. of pins
16 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
