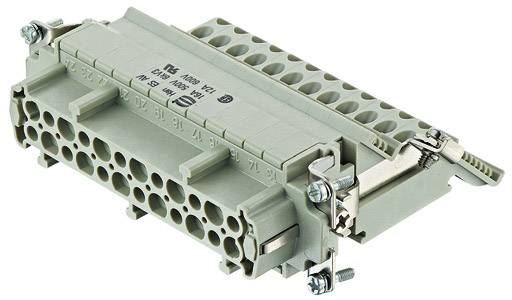

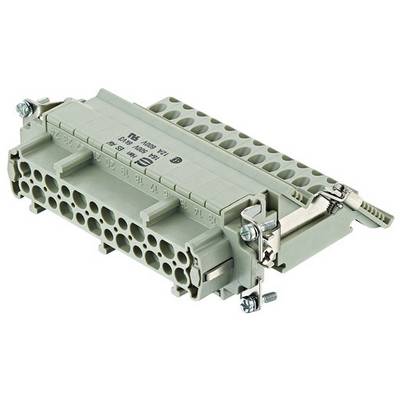

Socket insert 09330244739 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
24
Type
09330244739
Manufacturer part #
09330244739
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Net weight: 202.82 g
- Size: 24 B
- Rated current: 16 A
- Number of contacts: 24
- Rated voltage: 500 V
- Wire cross-section: 0.14 mm² - 2.5 mm²
- Gender: Socket
- Plug-in cycles: ≥ 500
- Rated surge voltage: 6 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 4 mΩ
- Pollution degree: 3
- Type
09330244739
- Product type
Socket inset
- Manufacturer part #
09330244739
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
24
- Connection
Spring-loaded
- Total no. of pins
24 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
