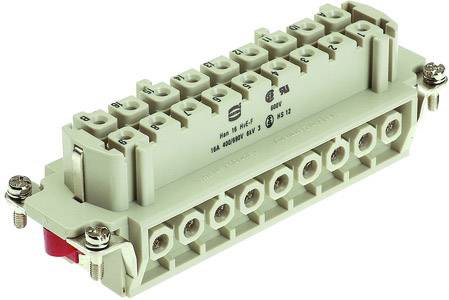

Socket insert 09340162701 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket inset
Number of pins
16
Type
09340162701
Manufacturer part #
09340162701
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
14-day return policy included
Highlights & Details
Socket insert
Our service for you
Technical specifications
- Net weight: 112.3 g
- Size: 24 B
- Rated current: 16 A
- Number of contacts: 16
- conductor cross-section: 0.75 mm² - 2.5 mm²
- Gender: Socket
- mating cycles: ≥ 500
- Tightening torque: 0.5 Nm
- Rated voltage conductor-earth: 400 V
- Rated voltage conductor-conductor: 690 V
- Rated voltage: 6 kV
- Contact surface: Silver plated
- Forward resistance: ≤ 1 mΩ
- Stripping length: 7.5 mm
- Pollution degree: 3
- additional contacts: + 2 additional switch contacts
- Packaging type
Piece
- Type
09340162701
- Product type
Socket inset
- Manufacturer part #
09340162701
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
16
- Connection
Screws
- Total no. of pins
16 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
